- Phụ kiện kèm thêm (giá phụ kiện không nằm trong giá access point):

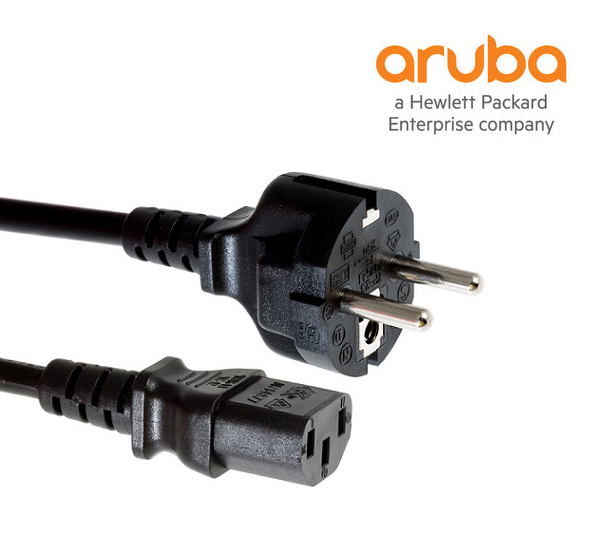

+ PC-AC-EC Cont Euro AC Power Cord: 55,000 VNĐ

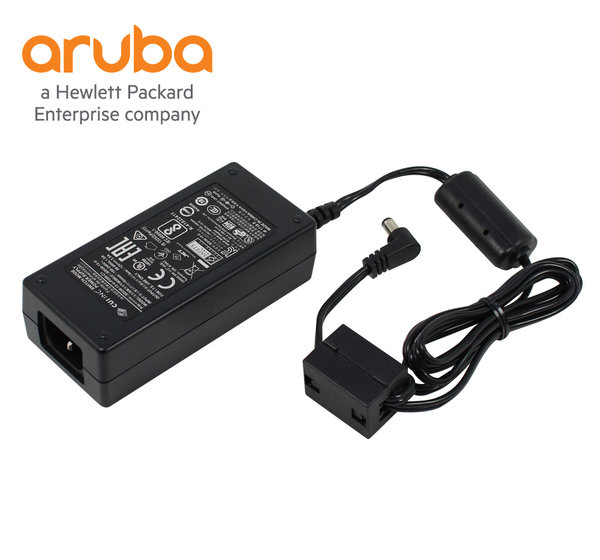

+ AP-AC-12V30B 12V 30W Power Adapter: 800,000 VNĐ

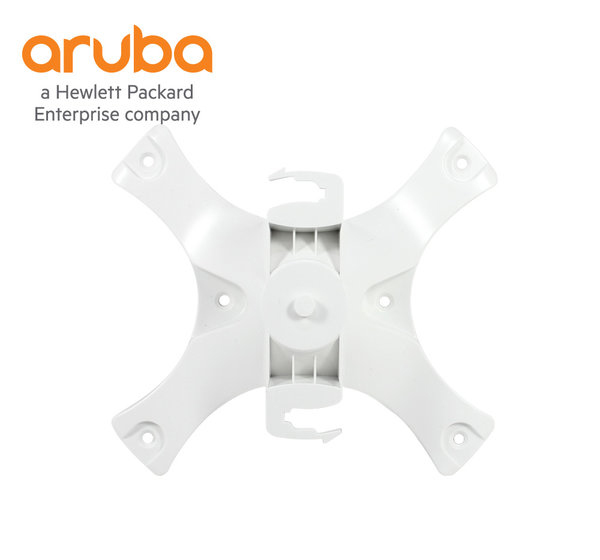

+ AP-220-MNT-W1W Mt Basic White Kit: 320,000 VNĐ
SPECIFICATIONS
| I/O Ports and Slots | One 10/100/1000BASE-T Ethernet network interface (RJ-45) |
| – Auto-sensing link speed and MDI/MDX | |
| – 802.3az Energy Efficient Ethernet (EEE) | |
| Visual indicators (multi-color LEDs): for System and Radio status | |
| Reset button: factory reset (during device power-up ) | |
| Kensington security slot | |
| Wi-Fi Radio Specifications | Indoor, dual radio, 5GHz 802.11ac 2x2 MIMO, and 2.4GHz 802.11n 2x2 MIMO |
| Connectivity standard IEEE 802.11 a/b/g/n/ac | |
| Supported frequency bands (country-specific restrictions apply): | |
| – 2.400 to 2.4835GHz | |
| – 5.150 to 5.250GHz | |
| – 5.250 to 5.350GHz | |
| – 5.470 to 5.725GHz | |
| – 5.725 to 5.850GHz | |
| Available channels: Dependent on configured regulatory domain | |
| Short guard interval for 20MHz, 40MHz and 80MHz channels | |
| Space-time block coding (STBC) for increased range and improved reception | |
| Low-density parity check (LDPC) for high-efficiency error correction and increased throughput | |
| Transmit beam-forming (TxBF) for increased signal reliability and range | |
| Supported data rates (Mbps): | |
| – 802.11b: 1, 2, 5.5, 11 | |
| – 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 | |
| – 802.11n: 6.5 to 300 (MCS0 to MCS15) | |
| – 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80 | |
| Wi-Fi Antennas | Two integrated dual-band down tilt omnidirectional antennas for 2x2 MIMO with the maximum antenna gain of 3.4dBi in 2.4GHz and 6.6dBi in 5GHz. |
| Physical characteristics | Dimensions: 5.9 x 5.9 x 1.6 in (5.9 x 5.9 x 1.6 in) |
| Weight: 0.8 lbs (380g) | |
| Power sources and consumption | The AP supports direct DC power and Power over Ethernet (PoE): |
| - When both power sources are available, DC power takes priority over PoE | |
| - Power sources are sold separately | |
| - Direct DC source: 12Vdc nominal, +/- 5% | |
| - Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source | |
| - Maximum (worst-case) power consumption: 12.3W (PoE) or 10.1W (DC) | |
| - Maximum (worst-case) power consumption in idle mode: 5.3W (PoE) or 4.4W (DC) | |
| Mounting | - The AP ships with two (black) mounting clips to attach to a 9/16-inch or 15/16-inch flat T-bar drop-tile ceiling. Wall mount (AP-220-MNT-W1W). |
| - Several optional mount kits are available to attach the AP to a variety of surfaces; see the Ordering Information the section below for detail |
|
| Environment | Operating Temperature: 0° C to +50° C (+32° F to +122° F) |
| Operating Humidity: 5% to 95% non-condensing | |
| Storage & Transportation: Temperature: -40° C to +70° C (-40° F to +158° F) | |
| Regulatory | - FCC/Industry of Canada |
| - CE Marked | |
| - RED Directive 2014/53/EU | |
| - Low Voltage Directive | |
| - (2014/35/EU) | |
| - EN 300 328 | |
| - EN 301 489 | |
| - EN 301 893 | |
| - UL/IEC/EN 60950 | |
| - EN 60601-1-1, EN60601-1-2 |
