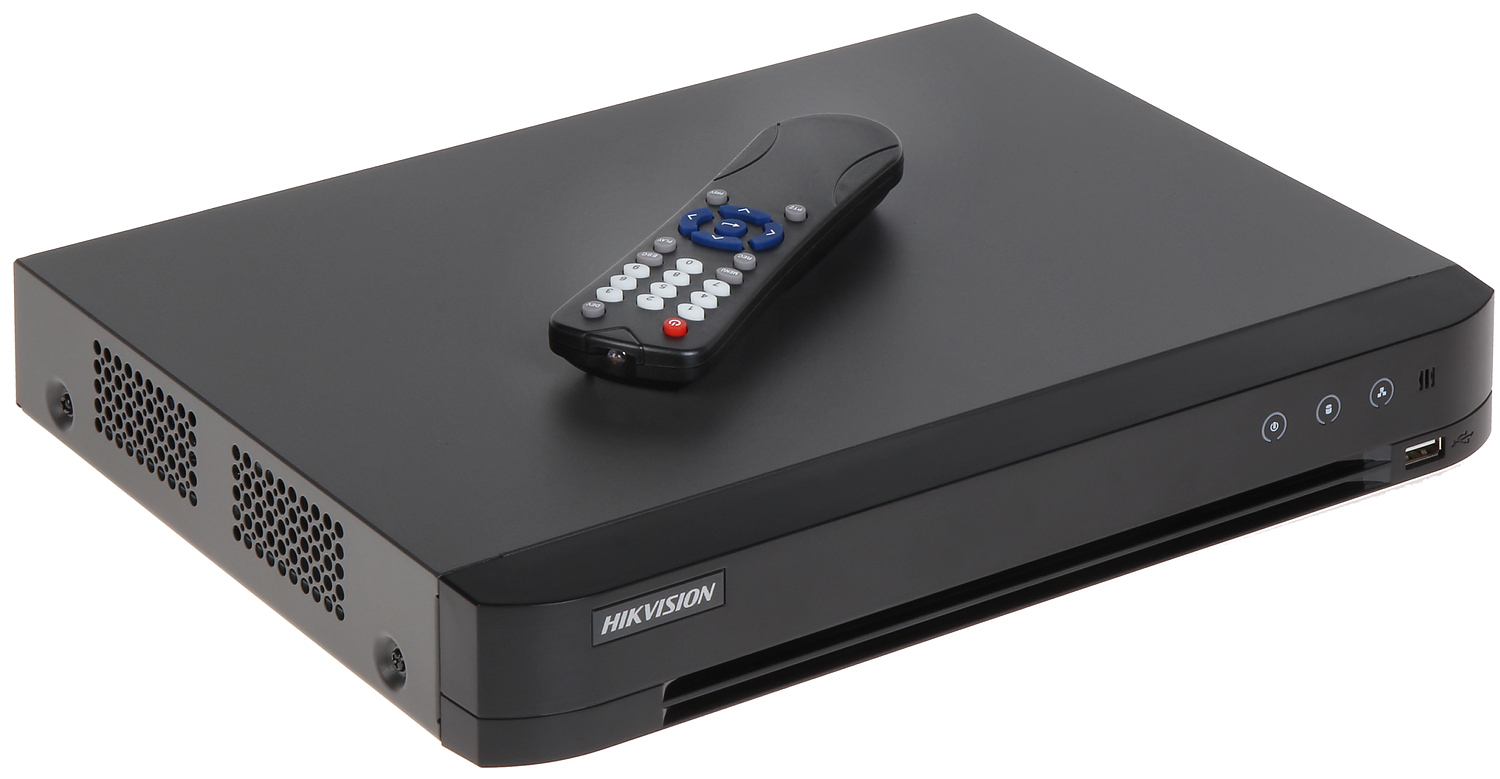

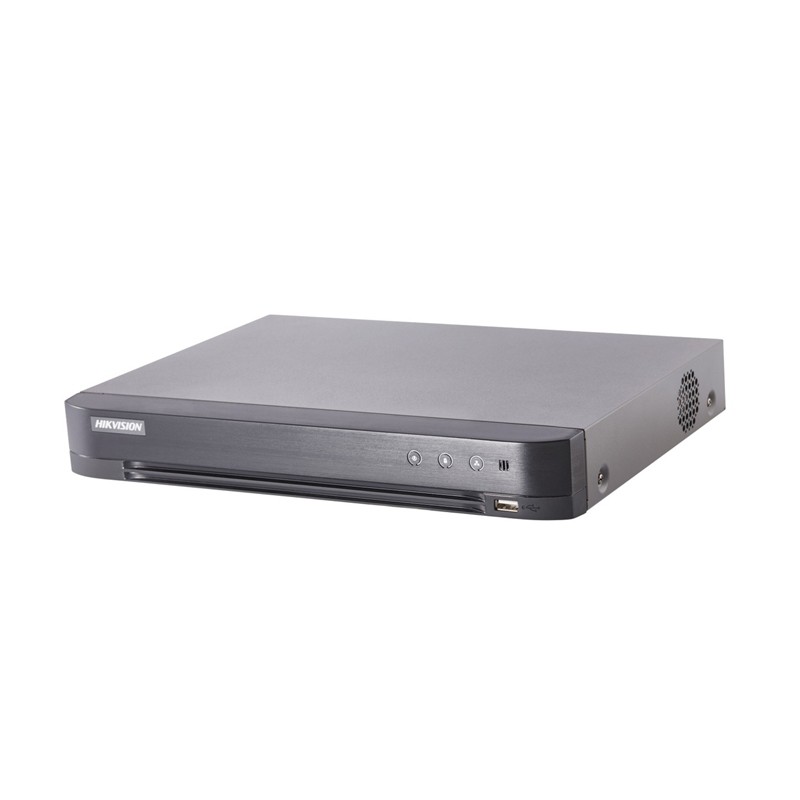

- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 encoding for main stream
- Self-adaptive HDTVI/HDCVI/AHD/CVBS signal input
- Connectable to H.265+/H.265/H.264+/H.264 IP cameras
- 8MP, 5MP, 4MP HDTVI video input and live view
- Long distance transmission over UTP and coaxial cable
- 8-ch synchronous playback
- Support alarm external interface
VIDEO/ AUDIO INPUT
| Analog video input | 8-ch |
| BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
| Supported HD TVI input | 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25 |
| Supported AHD input | 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30 |
| HDCVI input | 4MP, 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | PAL/NTSC |
| IP video input | 8-ch (up to 16-ch) |
| Up to 8MP resolution | |
| Supports H.265+/H.265/H.264+/H.264 IP cameras | |
| Audio input/ Two-way audio input |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
VIDEO/AUDIO OUTPUT
| CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 | ||
| HDMI/VGA output | VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | ||
| HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz | |||
| Encoding resolution | 8 MP/5 MP/4 MP/ 3 MP/1080p/720p/WD1/4CIF/VGA/CIF | ||
| Frame rate | Main Stream | 8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) | |
| Sub Stream | WD1/4CIF/CIF@25fps (P)/30fps (N) | ||
| Video bit rate | 32 Kbps to 10 Mbps | ||
| Audio output | 1-ch, RCA (Linear, 1 KΩ) | ||
| Audio bit rate | 64Kbps | ||
| Dual Stream | Supported | ||
| Stream type | Video, Video & audio | ||
| Synchronous playback | 8-ch | ||
NETWORK MANAGEMENT
| Incoming bandwidth | 64 Mbps |
| Remote connections | 64 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
ENCODING
| Video compression standard |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Frame rate | 25fps(P)/30fps(N) |
| Stream type | Video & Audio/Video |
| Dual-stream | Supported |
| Audio compression standard | G.711u |
| Audio bit rate | 64 Kbps |
HARD DISK
| Sata | 1 SATA interface |
| Capacity | Up to 10 TB capacity for each disk |
EXTERNAL INTERFACE
| Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input) |
| Network interface | 1: RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Serial interface | RS-485 (half-duplex) |
| Alarm in/out | 8/4 |
GENERAL
| Power supply | 12V DC |
| Consumption (without hard disks) | ≤ 20W |
| Working temperature | -10ºC to +55ºC (14ºF to 131ºF) |
| Working Humidity | 10% to 90% |
| Dimensions | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
| Weight (without hard disks) | Approximate 2 Kg (4.4 lb) |
