- Embedded processor
- H.264+/H.264 dual-stream video compression
- Support HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 06 channels IP camera inputs, each channel up to 5.0MP
- Max 24Mbps Incoming Bandwidth
- Smart Search and Intelligent Video System
- Warranty 02 years
SYSTEM
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
VIDEO AND AUDIO
| Analog Camera Input | 04 Channel, BNC |
| HDCVI Camera | 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps |
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30, 720P@25/30fps |
| TVI Camera | 5MP, 3MP, 1080P@25/30, 720P@25/30fps |
| CVBS Camera | PAL / NTSC |
| IP Camera Input | 4+2, each channel up to 2MP |
| Audio In/Out | 1/1, RCA |
| Two-way Talk | Reuse audio in/out, RCA |
RECORDING
| Video Compression | H.264+/H.264 |
| Resolution | 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF |
| Record Rate | Main stream: 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps) |
| Sub Stream: 960H(1~12fps); D1/CIF/QCIF(1~25/30fps) | |
| Video Bit Rate | 1Kbps ~ 6144Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Audio Compression | N/A |
| Audio Sample Rate | N/A |
| Audio Bit Rate | N/A |
DISPLAY
| Interface | 1 HDMI ,1 VGA |
| Resolution | 2560×1440, 1920×1080, 1280×1024, 1280×720, 1024×768 |
| Multi-screen Display | When IP extension mode not enabled: 1/4 |
| When IP extension mode enabled: 1/4/6 | |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
NETWORK
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.42, CGI Conformant |
VIDEO DETECTION AND ALARM
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | N/A |
| Relay Output | N/A |
PLAYBACK AND BACKUP
| Playback | 1/4 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
STORAGE
| Internal HDD | 1 SATA Port, up to 08TB capacity |
| eSATA | N/A |
AUXILIARY INTERFACE
| USB | 02 ports USB 2.0 |
| RS232 | N/A |
| RS485 | N/A |
ELECTRICAL
| Power Supply | DC12V/2A |
| Power Consumption (Without HDD) | <10W (without HDD) |
GENERAL

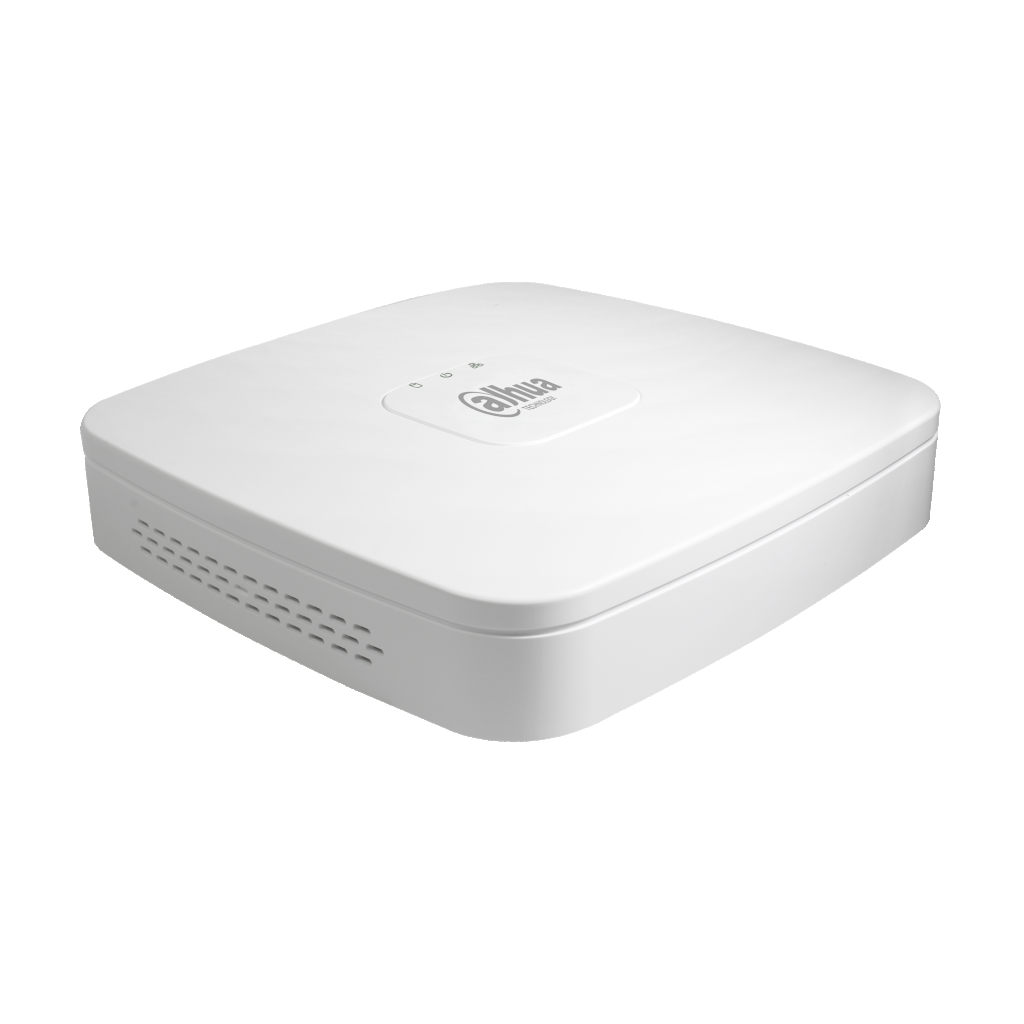

| Dimensions | Smart 1U, 205mm×211mm×45mm (8.1“×8.3”×1.8“) |
| Net Weight (without HDD) | 0.55kg (1.2lb) (without HDD) |
| Gross Weight | 1kg (2.2lb) |
| Installation | Desktop installation |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Certifications | FCC: Part 15 Subpart B |
| CE: CE-LVD: EN 60950-1/IEC 60950-1 | |
| CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 | |
| UL: UL 60950-1 |
