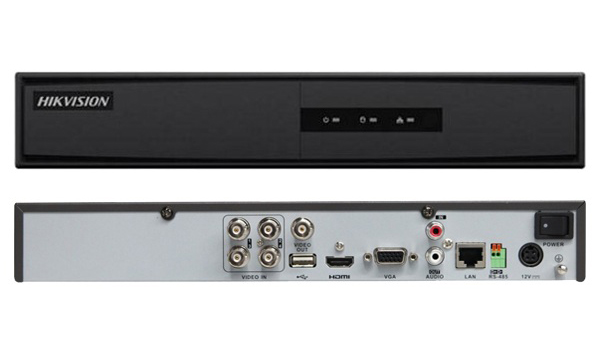

- 4-ch video & 1-ch audio input
- HD-TVI/analog/AHD/IP camera quadruple hybrid
- Full channel real-time recording at 720P resolution
- HDMI output at up to 1920×1080P resolution
- Long transmission distance over coax cable
- Front panel and alarm I/O optional
- 1 SATA, 2 USB2.0
VIDEO/ AUDIO INPUT
| Analog video input | 4-ch |
| BNC interface (1.0Vp-p, 75 Ω) | |
| Supported HD TVI input | 720p/25, 720p/30 |
| Supported AHD input | 720p/25, 720p/30, CVBS |
| IP video input | 1-ch |
| Up to 960p resolution | |
| Audio input/ Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
VIDEO/AUDIO OUTPUT
| HDMI/VGA output | 1-ch, 1920 × 1080/60Hz,1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
NETWORK MANAGEMENT
| Remote connections | 32 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS |
ENCODING
| Video compression standard |
H.264+/H.264 |
| Encoding resolution | 720p/WD1/4CIF/VGA/CIF |
| Frame rate | 25fps(P)/30fps(N) |
| Video bit rate | 32 Kbps to 4 Mbps |
| Stream type | Video & Audio/Video |
| Dual-stream | Suopported |
| Audio compression standard | G.711u |
| Audio bit rate | 64 Kbps |
| Synchronous playback | 4-ch |
HARD DISK
| Type | 1 |
| Capacity | Up to 6TB capacity for each disk |
EXTERNAL INTERFACE
| Network interface | 1: RJ-45 10M/100M self-adaptive Ethernet interface |
| USB interface | Rear panel: 2 x USB 2.0 |
GENERAL
| Power supply | 12V DC |
| Consumption (without hard disks) | ≤ 8W |
| Working temperature | -10ºC to +55ºC (14ºF to 131ºF) |
| Working Humidity | 10% to 90% |
| Chassis | 260 mm chassis |
| Dimensions | 260 × 222 × 45mm (10.2 × 8.7 × 1.8 inch) |
| Weight (without hard disks) | Approximate 1 Kg (2.2 lb) |
