FEATURES :
●Output power factor 1

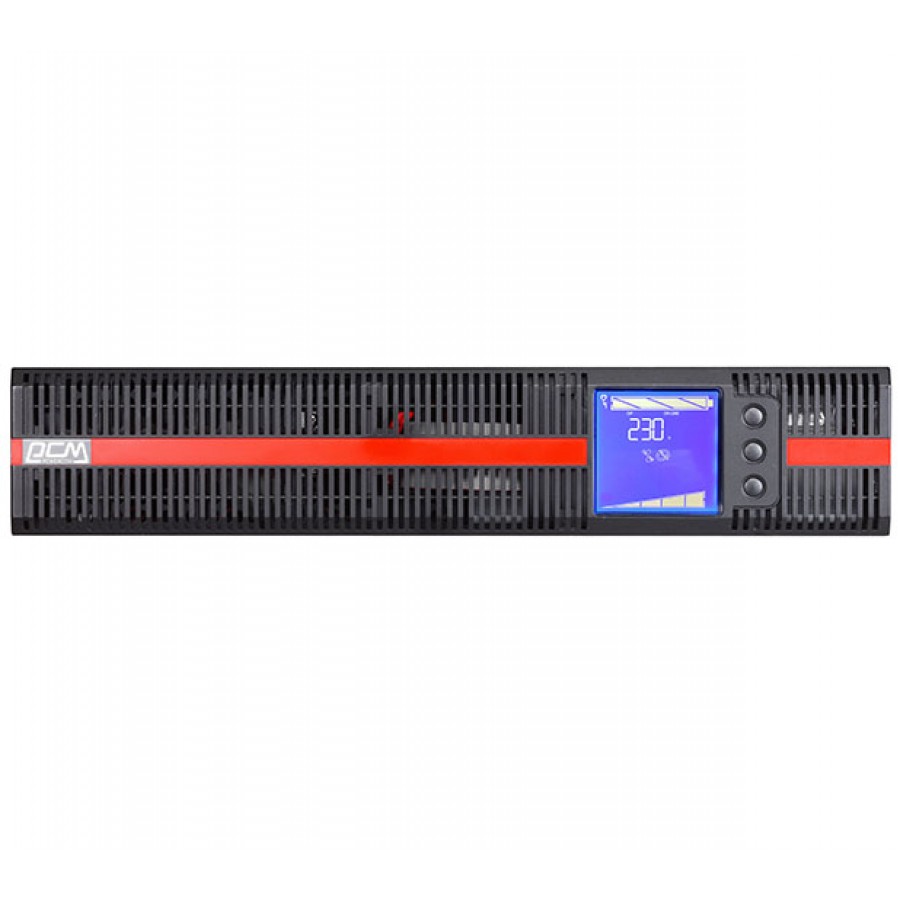

MRT series is a new generation UPS combined with advanced technology and output power factor 1 to perfectly protect your
system, also ensure the best output performance with lower power loss
●Battery hot-swappable design
This design ensures the continuity of power to protect equipment during battery replacement.
●Pure sine wave output with less than 2.5% THD
●Brand new diagram LCD display
The new MRT series equipped with industry-leading auto-rotation LCD display to suit the installation formation, vertical tower or rack mount. Users can acquire all information instantly from the big size and clear display.
●True double conversion
A true double conversion UPS will provide clean, high quality and stable power to fully
to protect your important device.
●UPSMON Pro and APP support
With UPS monitoring system, user can easily control both device and UPS.
●50 / 60 Hz frequency converter mode
No matter how low/high the input voltage is, it can lock output frequency at 50 Hz or 60 Hz.
SPECIFICATION
|
INPUT |
Nominal voltage |
208V / 220V / 230V / 240V |
||
|
Voltage range |
120V to 300V |
|||
|
Frequency |
50Hz to 65Hz autosensing |
|||
|
Phase |
Single phase |
|||
|
Power factor |
≧0.99 @ Nominal Voltage (100% Load) |
|||
|
OUTPUT |
Voltage |
208V / 220V / 230V / 240V ±2% (selectable output voltage) |
||
|
Frequency |
50Hz / 60Hz ±0.25Hz |
|||
|
Waveform |
Pure sine wave |
|||
|
Phase |
Single phase |
|||
|
Harmonic distortion |
≦ 2.5% THD at non-linear load |
|||
|
≦ 2 % THD at the linear load |
||||
|
High-efficiency mode |
>95% |
|||
|
Crest Factor |
3: 1 |
|||
|
Connections |
|
|||
|
PROTECTION |
Overload protection |
UPS automatic power off if overload exceeds 105% to 120% of nominal at 30 seconds; 121% to 150% for 10 seconds |
||
|
Short circuit protection |
UPS output cut off immediately or protected by input fuse or circuit breaker |
|||
|
Tele-communication |
RJ45 |
|||
|
Surge protection |
230V (IEEE C61000-4-5 level 3) |
|||
|
BATTERY |
Type |
Sealed, maintenance-free lead acid battery |
||
|
Typical recharge time |
4 hours to 90% |
|||
|
Battery quantity |
12V 9Ah x6 |
|||
|
Management |
Self-test, adjustable battery transfer points, and alarm settings |
|||
|
Cold start (DC start) |
Yes |
|||
|
Backup time (100% load) |
2 - 4 minutes |
|||
|
Protection |
Battery low cut-off without draining any current |
|||
|
GENERAL |
Dimension (W x D x H) |
428mmx635mmx84mm |
||
|
Product weight |
27.6kg |
|||
|
Display (LED/LCD) |
LED - line mode (green), bypass / battery mode (yellow), fault (red) |
|||
|
LCD - input/output voltage and frequency, online mode, backup mode, battery capacity, load level |
||||
|
Communication interface |
Standard - RS-232,USB B-type *Optional - SNMP |
|||
|
Audible noise |
< 50dBA (1m from surface) |
|||
|
Ambient temperature |
+0 °C to +40 °C |
|||
|
Storage temperature |
- 20 °C to +50 °C |
|||
|
Altitude |
2000 meters max |
|||
|
Humidity |
0-95%, non-condensing |
|||
| CAPACITY | 3000VA/3000W | |||
