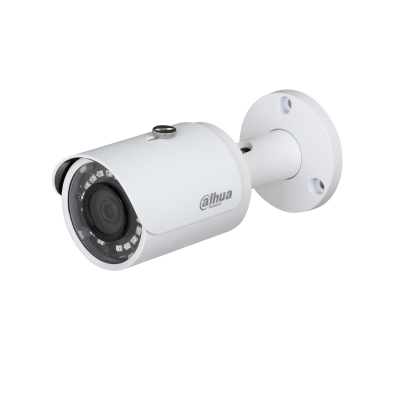

CAMERA 4.0MP IR MINI-BULLET NETWORK DH-IPC-HFW1430SP

Viết đánh giá
Tình trạng: Chỉ còn 68 sản phẩm
2.030.000₫ 2.900.000₫

- 1/2.7” 4.0 Megapixel progresive CMOS

- H.264&H.264+ dual-stream encoding

- 20fps@4M (2688×1520) &25/30fps@3M (2304×1296)

- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

- 2.8 mm (3.6 mm optional)

- Max IR LEDs Length 30m

- IP67, PoE

- Warranty 02 years

Hãy gọi Liên hệ 0599262828

CAMERA

Image Sensor 1/2.7” 4.0 Megapixel progresive CMOS
Effective Pixels 4.0 Megapixel.
RAM/ROM 256MB/16MB
Scanning System Progressive
Electronic Shutter Speed N/A
Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up tp 30m (98.5ft)
IR On/Off Control Auto / Manual
IR LEDs 18

LENS

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm Optional)
Max Aperture F2.0
Angle of View H:98°/77°, V:51°/41°
Optical Zoom N/A
Focus Control Manual
Close Focus Distance N/A
Pan/Tilt/Rotation Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

INTELLIGENCE

Event Trigger N/A
IVS N/A

VIDEO

Compression H.264 + / H.264
Smart Codec N/A
Streaming Capability 2 Streams
Resolution 20fps@4M (2688×1520)/3M(2048×1536)(2304×1296)/1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576), VGA (640 x 480)
Frame Rate Main Stream: 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)s)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.264: 24K ~ 8192Kbps
Corridor Mode Support
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

AUDIO

Compression N/A

NETWORK

Ethernet RJ-45 (10/100Base-T)
Mobile Communication N/A
Wi-fi N/A
Operating band Model 1: N/A
Model 2: N/A
Protocol IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS
Interoperability ONVIF, CGI
Streaming Method Unicast / Multicast
Max. User Access 20 Users
Edge Storage NAS; Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone IOS, Android

CERTIFICATIONS

Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

INTERFACE

Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A

GENERAL

Power Supply 12V DC or PoE (802.3af)
Power Consumption <7.5W
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Material Metal & Plastic
Dimensions Φ70mm×164.7mm(2.76’x6.49′)
Weight 0.44Kg(0.97lb)
