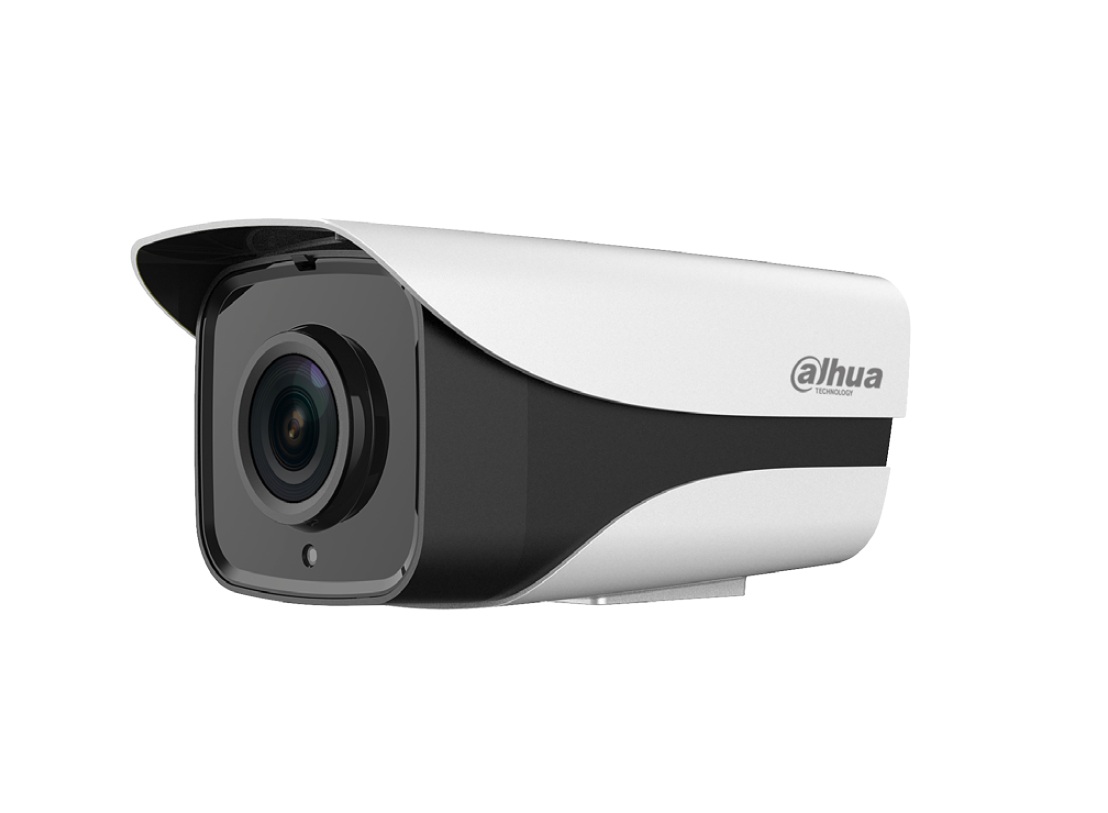

CAMERA 8.0MP IR BULLET NETWORK DH-IPC-HFW1831SP

Viết đánh giá
Tình trạng: Chỉ còn 68 sản phẩm
4.060.000₫ 5.800.000₫

- 1/2” 8.0 Megapixel progressive CMOS

- H.265& H.264 dual-stream encoding

- 20fps@5M(2592×1944) &25/30fps@3M(2304×1296)

- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

- 2.8 mm (3.6mm optional)

- Max IR LEDs Length 30m

- IP67, PoE

- Warranty 02 years

Hãy gọi Liên hệ 0599262828

CAMERA

Image Sensor 1/2” 8.0 Megapixel progresive CMOS
Effective Pixels 8.0 Megapixel
RAM/ROM 512MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.03Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up tp 50m
IR On/Off Control Auto / Manual
IR LEDs 2

LENS

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm Optional)
Max Aperture F2.0
Angle of View H:96°/78°, V:70°/58°
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance 0.6m(0.9m)
Pan/Tilt/Rotation Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

INTELLIGENCE

Event Trigger Motion detection, Video tampering, Scene changing,
Network disconnection, Ip address conflict, Illegal
access, Storage anomaly
IVS Tripwire, Intrusion

VIDEO

Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 8.0 MP
Frame Rate Main Stream: 8MP
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 12K ~ 8448Kbps
H.264: 32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

AUDIO

Compression N/A

NETWORK

Ethernet RJ-45 (10/100Base-T)
Mobile Communication N/A
Operating band Model 1: N/A
Model 2: N/A
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS; Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone IOS, Android

CERTIFICATIONS

Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

INTERFACE

Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A

GENERAL

Power Supply 12V DC or PoE (802.3af)
Power Consumption 7.8W
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Material Metal & Plastic
Dimensions 194.1mm×96.1mm×89.9mm (7.64”×3.79”×3.54”)
Weight 0.79kg (1.74lb)
