FEATURES :
Double conversion on-line technology with 0.9 power factor
Input power factor correction (PFC)
Pure sine wave output with less than 3% T.H.D.
High-efficiency mode selectable
Free-run mode setting
Active-fan operation dependant on load level to reduce noise and save energy
Protections for overload, short circuit, telecommunication, etc.
Emergency Power Off (EPO) protection
Remaining backup time display via LED or LCD (optional)
Extended backup time with battery pack
SPECIFICATION
INPUT | Voltage | 100V / 110V / 115V / 120V / 127V / 208V / 220V / 230V / 240V |
110V-level mode: 60V to 69V under 40% load, 70V to 79V under 70% load, 80V to 144V with 100% load | ||
220V-level mode: 120V to 139V under 40% load, 140V to 159V under 70% load, 160V to 276V with 100% load | ||
Frequency | 50Hz / 60Hz auto sensing | |
Phase | Single phase | |
Power factor | > 0.97 | |
OUTPUT | Voltage | 100V / 110V / 115V / 120V / 220V / 230V / 240V ±2% (selectable output voltage) |
Frequency | 50Hz / 60Hz ±0.5% | |
Waveform | Pure sine wave | |
Phase | Single phase | |
Harmonic distortion | < 3% of T.H.D. at linear load | |
Efficiency | > 95% (high efficiency mode, AC to AC) | |
Connections | * Please refer below "Receptacle Options". The customized receptacle can be discussed. | |
PROTECTION | Overload protection | UPS automatic power off if overload exceeds 106% to 120% of nominal at 30 seconds; 121% to 150% for 10 seconds |
Short circuit protection | UPS output cut off immediately or protected by input fuse or circuit breaker | |
Telecommunication | RJ45x2 | |
Alarm | Buzzer beeps under backup mode, battery low, battery charging fault, and overload | |
BATTERY | Type | Sealed, maintenance-free lead acid battery |
Battery quantity | 12V 9Ah x6 | |
Backup time (100% load) | Approximately 4 minutes | |
Protection | Battery low cut-off without draining any current | |
STANDARDS | Dimension (W x D x H) |
225mm x 420mm x 360mm |
Product weight | 35.6kg | |

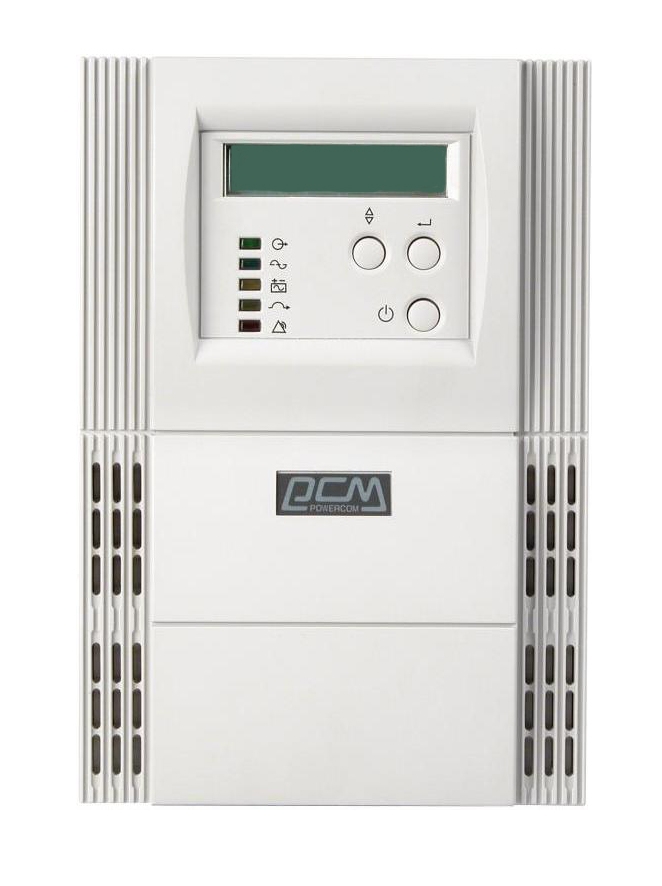

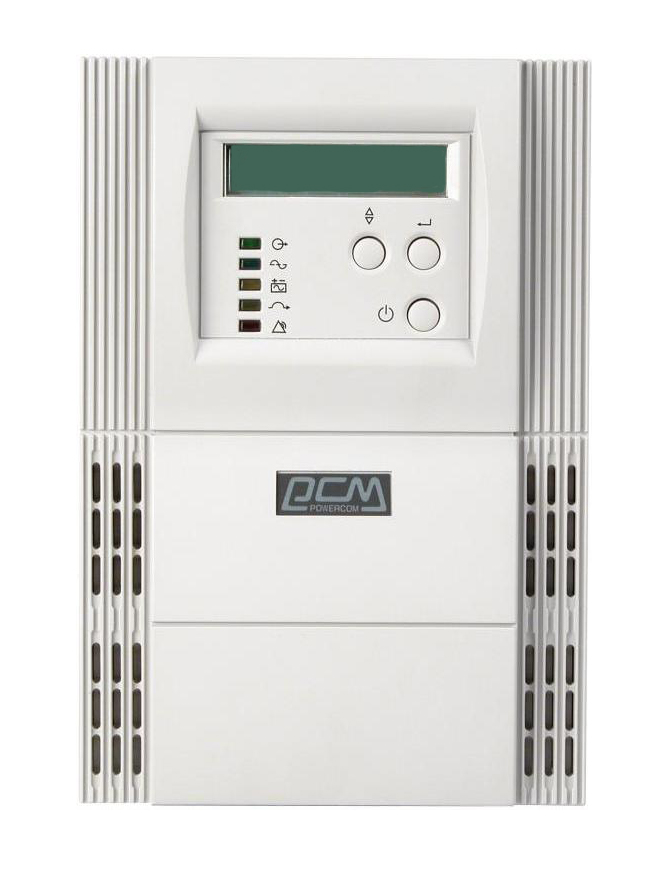

Display (LED,LCD) | LED - line mode (green), bypass / battery mode (yellow), fault (red); LCD - input/output voltage and frequency, online mode, backup mode, battery capacity, load level | |
Communication interface | Standard - RS-232; *Optional - USB B-type and/or SNMP | |
Audible noise | < 50dBA (1m from surface) | |
Ambient temperature | 0 to 40℃ | |
Storage temperature | -20 °C to +50 °C | |
Humidity | 0-95%, non-condensing | |
Capacity | 3000VA/2100W |
