FEATURES :

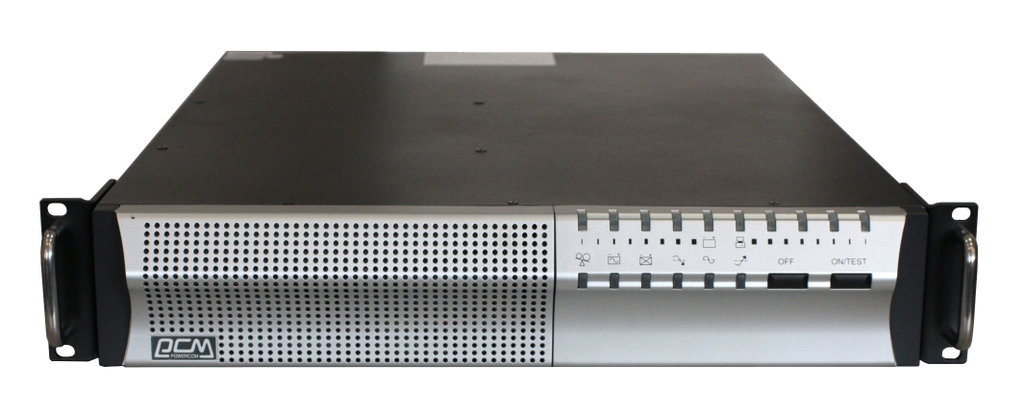

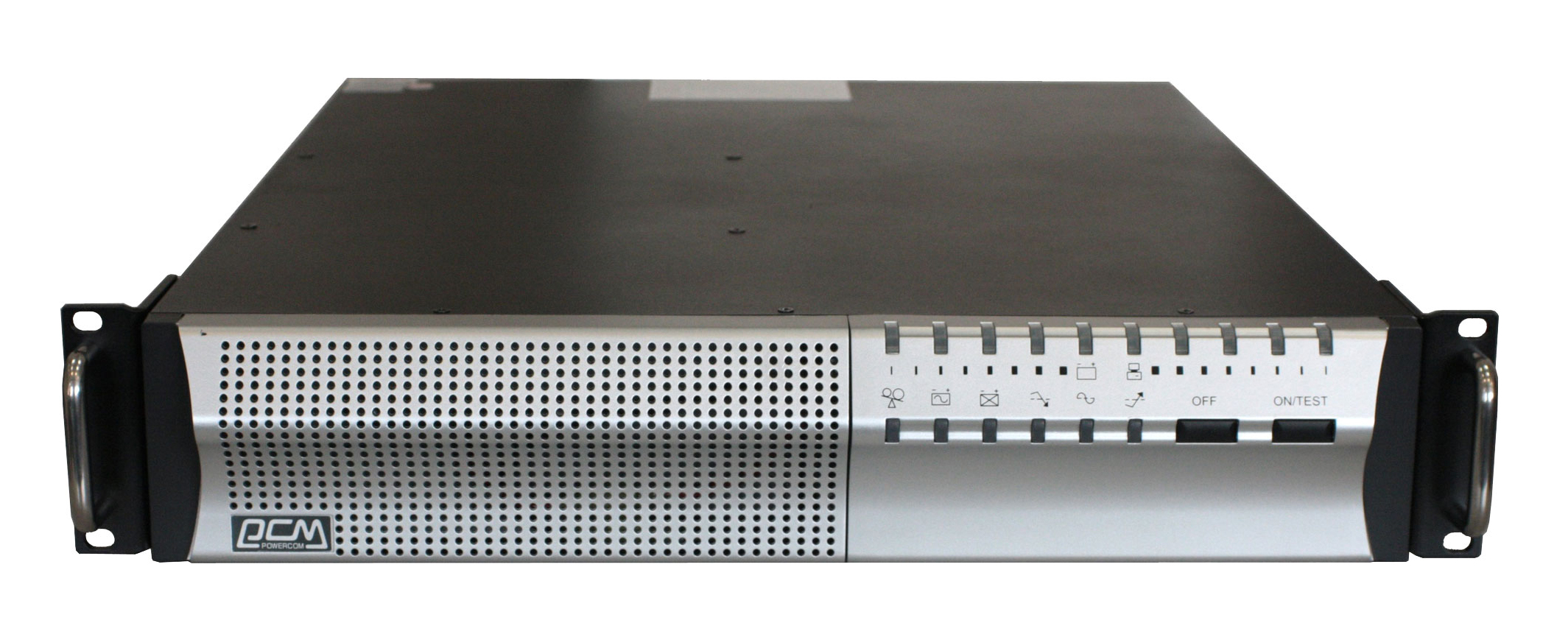

Bi-directional (Tower and rack mount) placement pure sine wave line-interactive UPS
Power factor 0.9 design
Built-in automatic voltage regulator (AVR)
LED displaying UPS status, battery capacity, and output voltage (LCD)
Green mode setting for energy saving
Automatic self-diagnostic and alarm warnings
Surge, short circuit, overload, and tele-communication protections
Discharge and overcharge protection
Smart power management with software
Hot swappable battery replacement
SNMP communication capability (Optional)
SPECIFICATION
| INPUT | Voltage | 220V/230V/240V (Adjustable from 149.5V to 310V) |
| Frequency | 50Hz/60Hz ±10% auto sensing | |
| OUTPUT | Voltage (Battery mode) | Pure sine wave at +/-5% nominally, -10% after low battery warming |
| AVR | Output voltage will boost when input voltage is between -9% to -27.5% of nominal; output voltage will buck when input voltage is between +9% to +25% of nominal. | |
| Waveform | Pure sine wave | |
| Transfer time | 2 to 4 milliseconds including detection time (typical) | |
| PROTECTION | Overload protection | UPS will automatically power off if overload exceeds 110% ofnominal at 20 seconds; 125% at 5 seconds. |
| Surge | 300Joules, 2ms | |
| Short circuit protection | UPS output will be cut off immediately or be protected by input circuit breaker. | |
| Telecommunication | RJ45 | |
| EMI / RFI filter | 100kHz to 10MHz | |
| Fuse | Yes | |
| Alarm | Buzzer beeps under backup mode, battery low, battery charging fault, and overload | |
| BATTERY | Type | Sealed, maintenance-free lead acid battery |
| Battery quantity | 12V 9Ah*2 | |
| Protection | Automatic diagnostics, over-discharge and short circuit protection by fuse | |
| STANDARDS | Dimension (W x D x H) |
428*453*84 mm |
| Display (LED,LCD) | LED indicator | |
| Communication interface | Standard - RS-232 and USB B-type; *Optional - SNMP | |
| Audible noise | <50dBA (1 meter from surface) | |
| Ambient operation | 0 to 40℃, 0 to 95% humidity (non-condensing) | |
| Capacity | 1000VA/900W | |
