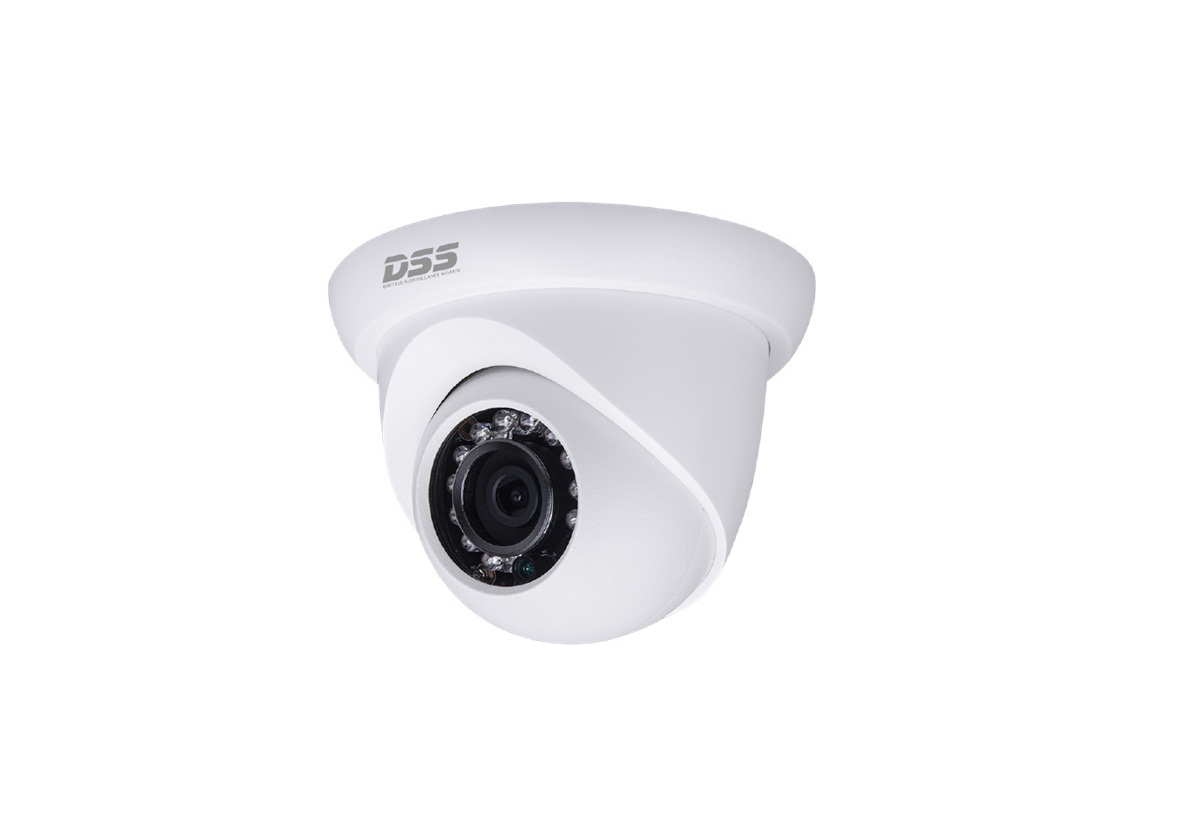

CAMERA 3.0MP IR EYEBALL NETWORK DS2300DIP

Viết đánh giá
Tình trạng: Chỉ còn 68 sản phẩm
1.400.000₫ 2.000.000₫

- 1/3” 3Megapixel progressive CMOS

- H.264+ & H.264 dual-stream encoding

- 20fps@3M(2048×1536) &25/30fps@2M(1920×1080)

- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC

- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

- 2.8 mm fixed lens (3.6mm optional)

- Max IR LEDs Length 30m

- IP67, PoE

- Warranty 02 years

Hãy gọi Liên hệ 0599262828

CAMERA

Image Sensor 1/3” 3Megapixel progresive CMOS
Effective Pixels 2304(H) x1536(V)
RAM/ROM 256MB/16MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up tp 30m (98.5ft)
IR On/Off Control Auto / Manual
IR LEDs 18

LENS

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8mm (3.6mm Optional)
Max Aperture F2.0
Angle of View H:98°/77°,V:51°/40.5°
Optical Zoom N/A
Focus Control Fixed
Close Focus Distance N/A
Pan/Tilt/Rotation Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

DORI DISTANCE

Detect 2.8mm: 58m(190ft)
3.6mm: 73m(240ft)
Observe 2.8mm: 23m(75ft)
3.6mm: 29m(95ft)
Recognize 2.8mm: 12m(39ft)
3.6mm: 15m(49ft)
Identify 2.8mm: 6m(20ft)
3.6mm: 7m(23ft)

INTELLIGENCE

Event Trigger N/A
IVS N/A

VIDEO

Compression H.264+/H.264
Smart Codec N/A
Streaming Capability 2 Streams
Resolution 3M(2048×1536)(2304×1296)/1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 3M(1 ~ 20fps)/2M (1 ~ 25/30fps)
Sub Stream: D1/CIF(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H264:24K ~ 8192Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization
(EIS)
Support
Smart IR Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)

AUDIO

Compression N/A

NETWORK

Ethernet RJ-45 (10/100Base-T)
Mobile Communication N/A
Operating band Model 1: N/A
Model 2: N/A
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP
Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Max. User Access 10 Users /20 Users
Edge Storage NAS; Local PC for instant recording
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Smart Phone IOS, Android

CERTIFICATIONS

Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

INTERFACE

Video Interface N/A
Audio Interface N/A
RS485 N/A
Alarm N/A

GENERAL

Power Supply 12V DC or PoE (802.3af)
Power Consumption <6.4W
Operating Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Conditions -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Vandal Resistance N/A
Material Metal & Plastic
Dimensions Φ108mm×84.9mm(4.25’x3.15′)
Weight 0.387Kg(0.85lb)
