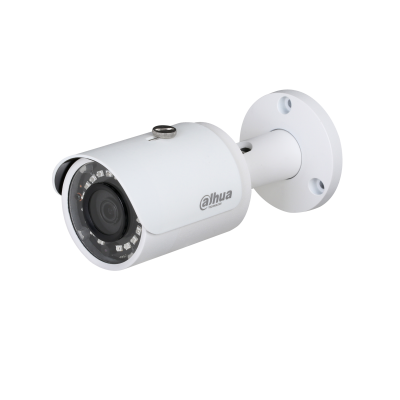

- 1/27” 2.0 Megapixel progressive scan CMOS
- H.264&H.264+ dual-stream encoding
- 25/30fps@1080P (1920x1080)
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 3.6 mm fixed lens
- Max IR LEDs Length 30m
- IP67, PoE
- Warranty 02 years
CAMERA
| Image Sensor | 1/2.7" 2.0 Megapixel progressive scan CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| RAM/ROM | 256MB/16MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Minimum Illumination | 0.1 Lux / F2.1 (color), 0 Lux IR |
| S/N Ratio | More than 50dB |
| IR Distance | Distance up tp 30m (98.5ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 18 |
LENS
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 2.8mm (3.6mm Optional) |
| Max Aperture | F2.0 |
| Angle of View | H: 101 °, V: 57 ° |
| Optical Zoom | N/A |
| Focus Control | Manual |
| Close Focus Distance | N/A |
| Pan/Tilt/Rotation | Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360° |
INTELLIGENCE
| Event Trigger | N/A |
| IVS | N/A |
VIDEO
| Compression | H.264 + / H.264 |
| Smart Codec | N/A |
| Streaming Capability | 2 Streams |
| Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 576), VGA (640 x 480) |
| Frame Rate | Main Stream: 1080p / 720p - 25 frames/sec. |
| Sub Stream: D1/CIF(1 ~ 25/30fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32-8192Kbps |
| Corridor Mode | Support |
| Day/Night | Auto(ICR) / Color / B/W |
| BLC Mode | BLC / HLC / DWDR |
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) |
Support |
| Smart IR | Support |
| Defog | N/A |
| Digital Zoom | 16x |
| Flip | 0°/90°/180°/270° |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
AUDIO
| Compression | N/A |
NETWORK
| Ethernet | RJ-45 (10/100Base-T) |
| Mobile Communication | N/A |
| Wi-fi | N/A |
| Operating band | Model 1: N/A |
| Model 2: N/A | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, IGMP, RTSP, RTP,SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS |
| Interoperability | ONVIF, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users |
| Edge Storage | NAS; Local PC for instant recording |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS,Easy4ip |
| Smart Phone | IOS, Android |
CERTIFICATIONS
| Certifications | CE (EN 60950:2000) |
| UL:UL60950-1 | |
| FCC: FCC Part 15 Subpart B |
INTERFACE
| Video Interface | N/A |
| Audio Interface | N/A |
| RS485 | N/A |
| Alarm | N/A |
GENERAL
| Power Supply | 12V DC or PoE (802.3af) |
| Power Consumption | 6.4W |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Storage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | N/A |
| Material | Metal & Plastic |
| Dimensions | Φ70mm×164.7mm(2.76’x6.49′) |
| Weight | 0.44Kg(0.97lb) |
