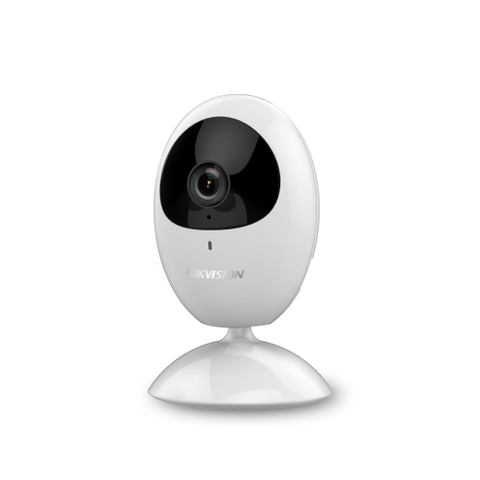

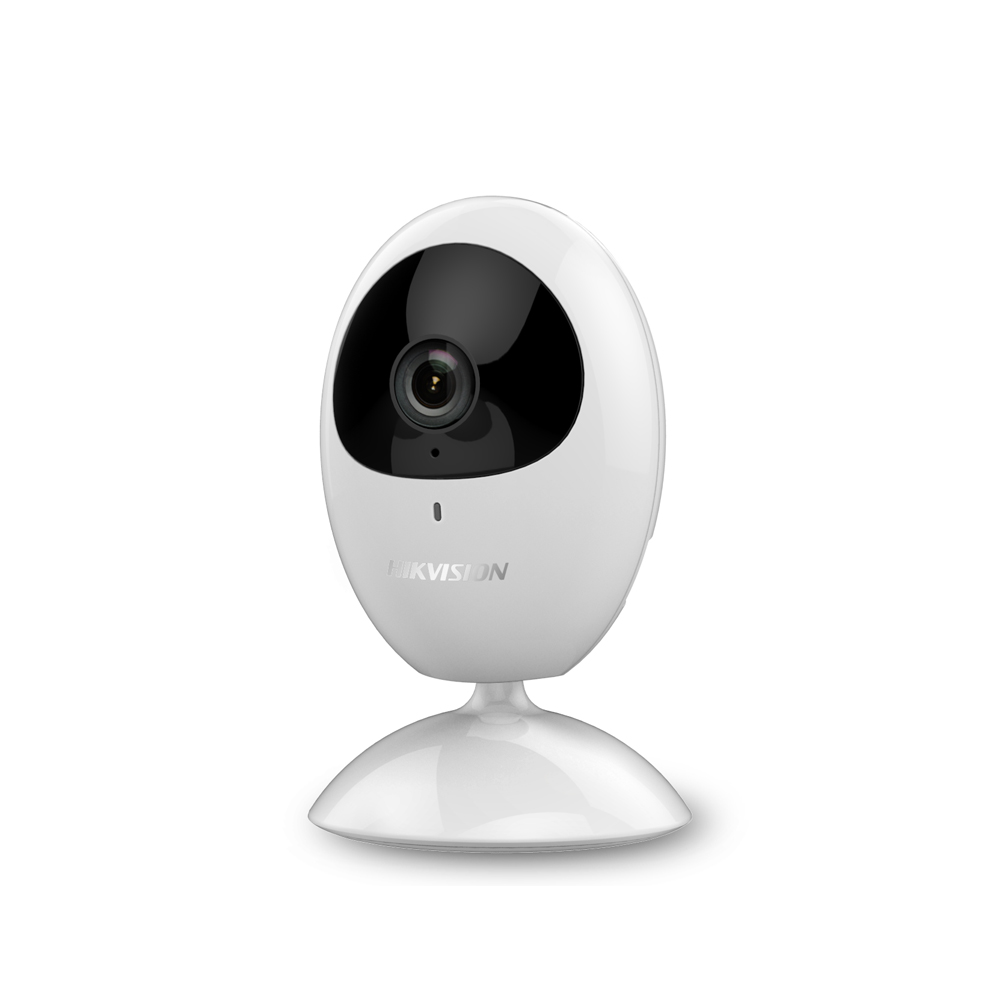

CAMERA 1.0MP MINI CUBE NETWORK DS-2CV2U01EFD-IW

Viết đánh giá
Tình trạng: Chỉ còn 59 sản phẩm
1.199.000₫ 1.500.000₫

- 1.0 megapixel high resolution

- Digital WDR, 3D DNR

- IR range: up to 10m

- Dual Streams

- Built-in microphone and speaker, support two-way audio

- Built-in Wi-Fi

- Support on-board storage, up to 128GB



Hãy gọi Liên hệ 0599262828

 CAMERA

Image Sensor 1/4" Progressive Scan CMOS
Min. Illumination 0.02Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Iris F2.0
Lens 2.8mm
Horizontal field of view 92°
Lens Mount Φ12
Day &Night IR cut filter with auto switch
DNR 3D DNR (Digital Noise Reduction)
Wide Dynamic Range Digital WDR 120dB

COMPRESSION STANDARD

Video Compression Main stream: H.264
Sub stream: H.264
H.264 Type Baseline Profile/Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)


Max. Resolution 1280 × 720
Main Stream        Max. Frame Rate 50Hz: 25fps (1280 × 720)
60Hz: 30fps (1280 × 720)
Sub Stream        Max. Frame Rate 50Hz: 25fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)
60Hz: 30fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Setting Brightness, saturation, sharpness, contrast are adjustable via client software
Day/Night Switch Support auto/scheduled
Backlight Compensation Support, zone optional
Region of Interest Support 1 fixed region for each stream

AUDIO

Environment Noise Filter Support
Audio Input/Output Support mono soundtrack
Audio Sampling Rate Max. 16 kHz

NETWORK

Network Storage Support microSD/SDHC/SDXC card, up to 128 GB local storage
Detection Motion Detection
Alarm Trigger Video Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, UPnP, IGMP, QoS, IPv6, Bonjour, SMTP, 802.1x
Standard ISAPI, CGI
General Function One-key reset, Anti-flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark

INTERFACE

On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Audio Interface 1 build-in microphone, 1 build-in speaker
Reset Yes

WI-FI

Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz - 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range 50 meters (The performance varies based on actual environment)

GENERAL

Working -10 °C to 40°C (14 °F to 104 °F)
Temperature/Humidity Humidity 95% or less (non-condensing)
Power Supply 5V DC ± 15%, micro USB interface
Power Consumption Max. 4.5W
IR Range 10 meters
Material Plastic
Dimension Φ 64 × 106.9 mm (Φ 2.52'' × 4.21'')
Weight 115 g (0.25 lbs)
