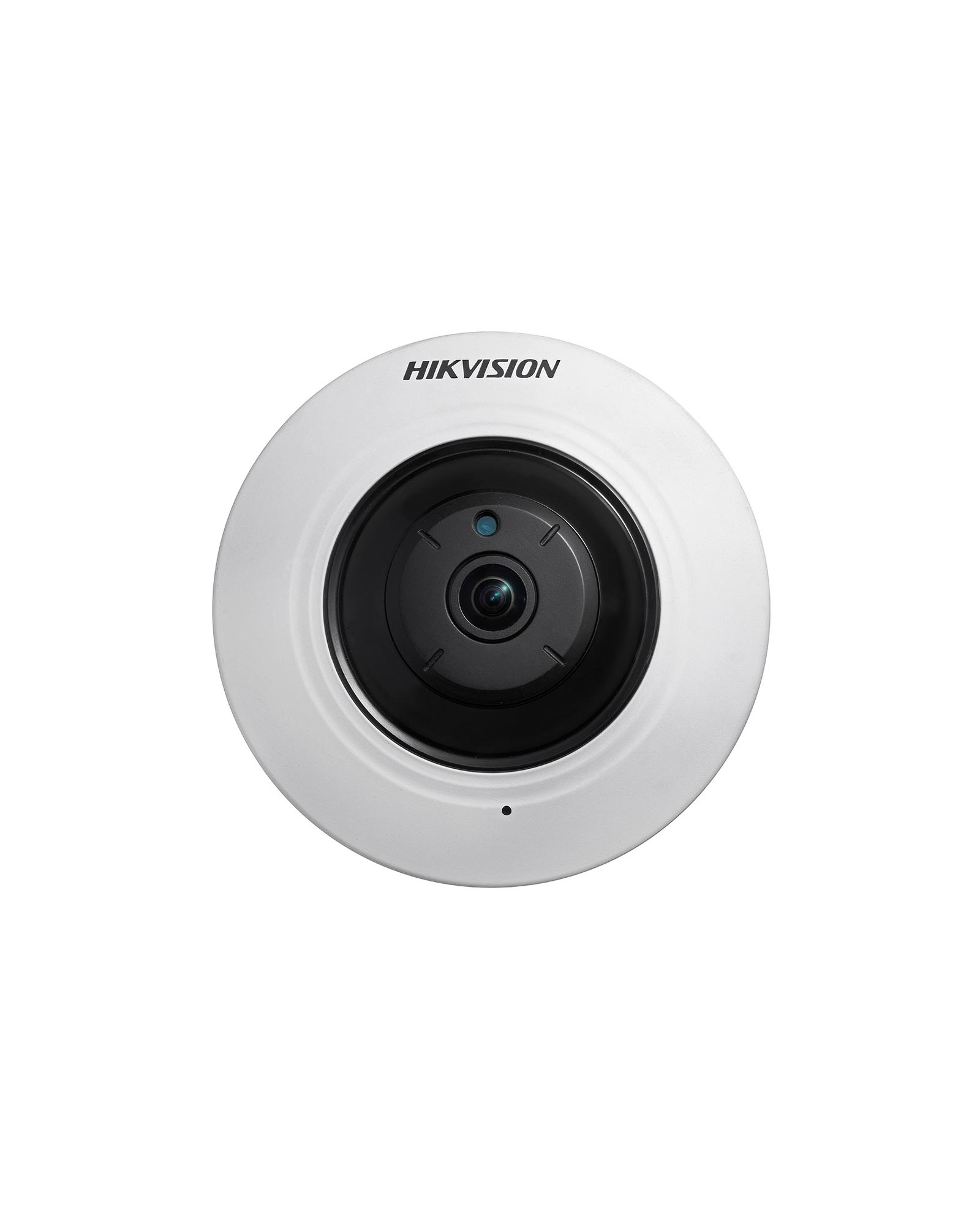

CAMERA
Image Sensor | 1/2.5" Progressive Scan CMOS |
Min. Illumination | Color: 0.01lux @(F1.2, AGC ON) |
0 lux with IR on | |
Shutter Speed | 1/3 s to 1/100,000 s |
Lens | 1.05 mm @ F2.2 |
Lens Mount | Φ12 |
Angle of view | horizontal field of view: 180°, vertical field of view: 180° |
Day &Night | IR cult filter with auto switch |
DNR | 3D DNR |
WDR | 120dB |
COMPRESSION STANDARD
Video Compression | Main stream: H.265/H.264 |
Sub stream: H.265/H.264/MJPEG | |
H.264 Type | Main Profile/High Profile |
H.264+ | Support |
H.265 Type | Main Profile |
H.265+ | Support |
Video Bit Rate | 32 Kbps to 16 Mbps |
Max. Resolution | 2560 × 1920 |
Main Stream Max. Frame Rate | 50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) |
60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960) | |
Sub Stream Max. Frame Rate | 50Hz: 25fps (352× 288, 704 × 576) |
60Hz: 30fps (352 × 240, 704 × 576) | |
Image Setting | Saturation, brightness, contrast, and sharpness are adjustable via client software or web browser |
Day/Night Switch | Auto/ Scheduled |
Image Enhancement | WDR/3D DNR/Backlight Compensation/Defog |
ROI | Support 1 fixed region for each stream |
Lens Distortion Correction | Support |
Target Cropping | Support |
LIVE VIEW DISPLAY
Mount Type | Support table, wall, and ceiling |
Display Mode | Support 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ |
NETWORK
Network Storage | NAS (Support NFS,SMB/CIFS), built-in microSD/SDHC/SDXC card slot, up to 128 G, ANR |
Detection | Motion detection, dynamic analysis, intrusion detection, line crossing detection |
Alarm Trigger | Video tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
General Function | One-key reset, anti-flicker, fassword protection, privacy mask, IP Address filtering, heartbeat, watermark |
INTERFACE
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet interface |
On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128GB |
GENERAL
Working | -10 °C to 50°C (14 °F to 122 °F) |
Temperature/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25% , PoE (802.3af, class 3) |
Power Consumption | Max. 6.7W |
IR Range | Up to 8 m |
Dimension | Φ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″) |
Weight | Approx. 600g g (1,32 lb.) |
