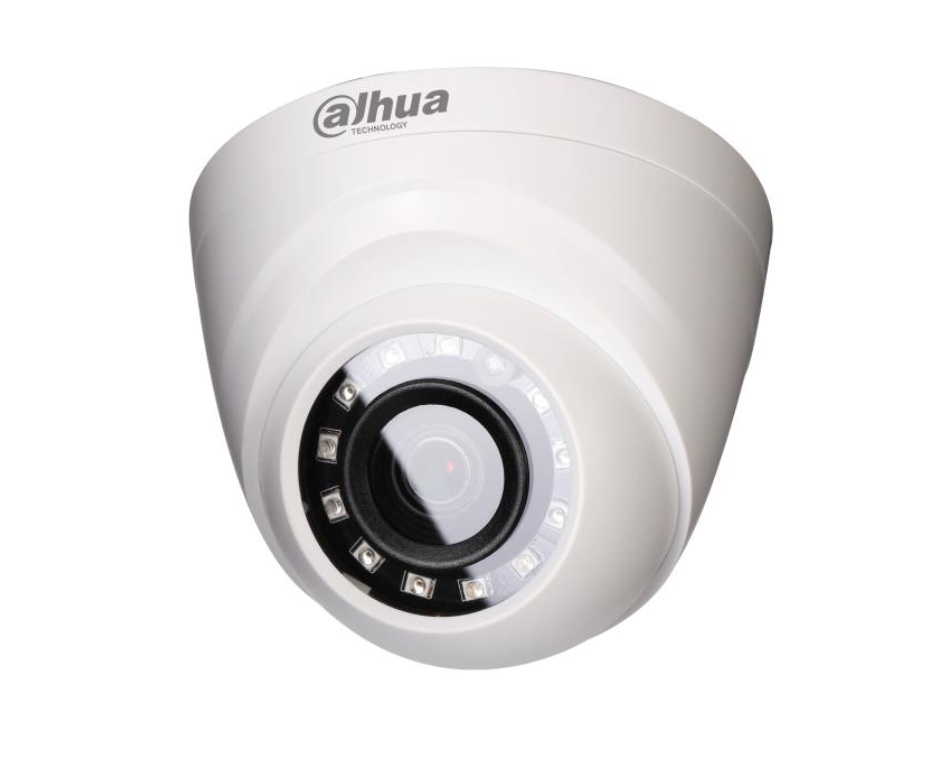

- 1/4" 1Megapixel CMOS
- 25/30fps@720P
- High speed, long distance real-time transmission
- HD and SD switchable
- OSD Menu, control over coaxial cable
- DWDR, Day/Night(ICR), AWB, AGC, BLC, 2DNR
- 3.6mm fixed lens (2.8mm optional)
- Max. IR LEDs length 30m, Smart IR
- IP67, DC12V
CAMERA
| Image Sensor | 1/4″ CMOS |
| Effective Pixels | 1280(H)×720(V), 1MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s |
| NTSC: 1/30~1/100000s | |
| Minimum Illumination | 0.05Lux/F2.0, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 30m (98feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 12 |
| Pan | 0° ~ 360° |
| Tilt | 0° ~ 90° |
| Rotation | 0° ~ 360° |
LENS
| Lens Type | Fixed lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 3.6mm (2.8mm Optional) |
| Max Aperture | F2.0 |
| Angle of View | H: 60° (83.4°) |
| Focus Control | N/A |
| Close Focus Distance | 600mm (500mm) |
| 23.6” (19.69”) |
VIDEO
| Resolution | 720P (1280×720) |
| Frame Rate | 25/30fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| BLC Mode | BLC / HLC / DWDR |
INTERFACE
| Audio Interface | N/A |
GENERAL
| Certifications | CE (EN55032, EN55024, EN50130-4) |
| FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) | |
| UL (UL60950-1+CAN/CSA C22.2 No.60950-1) | |
| Power Supply | 12V DC ±25% |
| Power Consumption | Max 3.8W (12V DC, IR on) |
| Operating Conditions | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Material | Aluminium |
| Dimensions | Φ93.4mm×79.4mm (Φ3.68"×3.13") |
| Weight | 0.35kg (0.77lb) |
