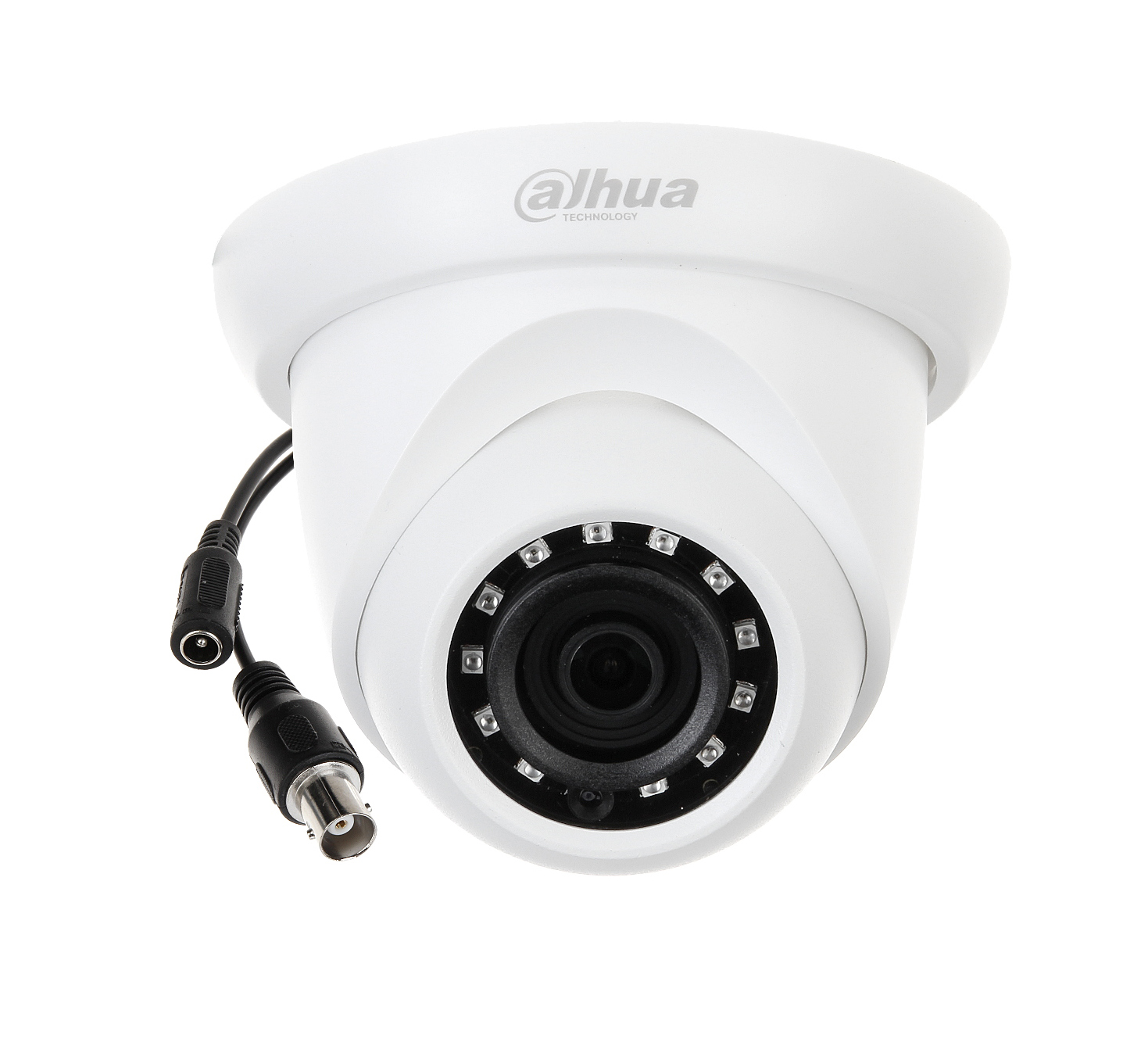

CAMERA 2.0MP HDCVI STARLIGHT IR EYEBALL DH-HAC-HDW2231SP

Viết đánh giá
Tình trạng: Chỉ còn 68 sản phẩm
1.550.000₫ 2.294.000₫

- Starlight, 120dB true WDR, 3DNR

- Max 30fps@1080P

- HD and SD output switchable

- 3.6mm fixed lens (2.8mm, 6mm optional)

- Max. IR length 30m, Smart IR

- IP67, DC12V

Hãy gọi Liên hệ 0599262828

CAMERA

Image Sensor 1/2.8″ CMOS
Effective Pixels 1937(H)×1097(V), 2.1MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/4s~1/100000s
NTSC: 1/3s~1/100000s
Minimum Illumination 0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 12

LENS

Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 3.6mm (2.8mm, 6mm Optional)
Max Aperture F1.6
Angle of View H: 87° (110.5°/52.9°)
Focus Control N/A
Close Focus Distance 1200mm (500mm, 1800mm)
47.24” (19.69”, 70.87”)
Pan/Tilt/Rotation Pan: 0° ~ 360°
Tilt: 0° ~ 90°
Rotation: 0° ~ 360°

DORI DISTANCE

Detect 25px/m (8px/ft) 2.8mm: 42m(138ft)
3.6mm: 55m(180ft)
6mm: 81m(266ft)
Observe 63px/m (19px/ft) 2.8mm: 17m(56ft)
3.6mm: 22m(72ft)
6mm: 32m(105ft)
Recognize 125px/m (38px/ft) 2.8mm: 8m(26ft)
3.6mm: 11m(36ft)
6mm: 16m(52ft)
Identify 250px/m (76px/ft) 2.8mm: 4m(13ft)
3.6mm: 6m(20ft)
6mm: 8m(26ft)

VIDEO

Resolution 1080P (1920×1080)
Frame Rate 25/30fps@1080P, 25/30fps@720P
Video Output 1-channel BNC HDCVI high definition video output / CVBS video output (Can switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Autol / Manual

CERTIFICATIONS

Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

INTERFACE

Audio Interface N/A

GENERAL

Power Supply 12V DC ±25%
Power Consumption Max 2.6W (12V DC, IR on)
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH/ Start up should be done at above -40°C (-40°F)
Ingress Protection & Vandal Resistance IP67
Material Aluminium
Dimensions Φ108mm×84.9mm (Φ4.25″×3.34″)
Weight 0.33kg (0.73lb)
