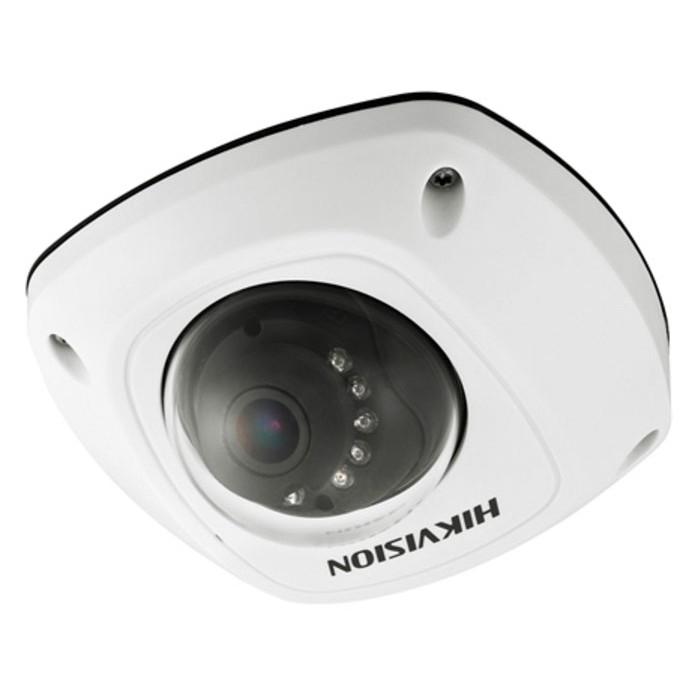

CAMERA FULL HD 2.0MP WDR MINI NETWORK DOME DS-2CD2522FWD-IW

Viết đánh giá
Tình trạng: Chỉ còn 59 sản phẩm
3.990.000₫ 5.520.000₫

- Up to 2 megapixel high resolution

- Support H.264+

- Support dual stream, Full HD 1080p

- 3-axis adjustment, PoE

- IP67, IK08

- Up to 10m IR range

- Built-in Wi-Fi

Hãy gọi Liên hệ 0599262828

 CAMERA

Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8mm, 4mm, 6mm @ F2.0
Angle of view 114°(2.8mm), 88°(4mm), 55°(6mm)
Lens Mount M12
Day &Night IR cut filter with auto switch
DNR 3D DNR (Digital Noise Reduction)
Wide Dynamic Range Digital WDR 120dB
3-Axis Adjustment Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360°

COMPRESSION STANDARD

Video Compression H.264 / MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps to 16 Mbps
Dual Stream Yes


Max. Resolution 1920 × 1080
Max Frame Rate  50Hz: :Main stream:25fps(1920×1080),25fps(1280×960),25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360)
60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720) Sub stream: 30fps(352×240),30fps(640×360)
Backlight
compensation
Yes, zone optional
Image Setting Rotate mode, saturation, brightness, contrast adjustable by client software or web
browser
ROI Support

NETWORK

Network Storage NAS (Support NFS,SMB/CIFS), ANR
Detection Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis
Face Detection Detects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info
Alarm Trigger Tampering alarm, Network disconnect, IP address conflict, Storage exception
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G) , ISAPI
General Function One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access

INTERFACE

Communication Interface 1 RJ45 10M/100M Ethernet port
On-board Built-in Micro SD/SDHC/SDXC slot, up to 128 GB

WIFI SPECIFICATION

Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.4 GHz – 2.4835 GHz
Channel Bandwidth 20/40MHz Support
Protocols 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b: 11Mbps; 11g: 54Mbps; 11n: up to 150Mbps
Wireless Range 50 meters (The performance varies based on actual environment)

GENERAL

Working -30 °C to 60 °C (-22 °F to 140 °F)
Temperature/Humidity Humidity 95% or less (non-condensing)
Power Supply 12V DC ± 25%, PoE (802.3af, class 3)
Power Consumption Max. 5W
Weather Proof Ratings IP67
Impact Protection IEC60068-275Eh; EN50102, up to IK08
IR Range 10 meters
Material Plastic & Metal
Dimension 99.3×96.7×52.8 mm
Weight 600g (1.32 lb)
