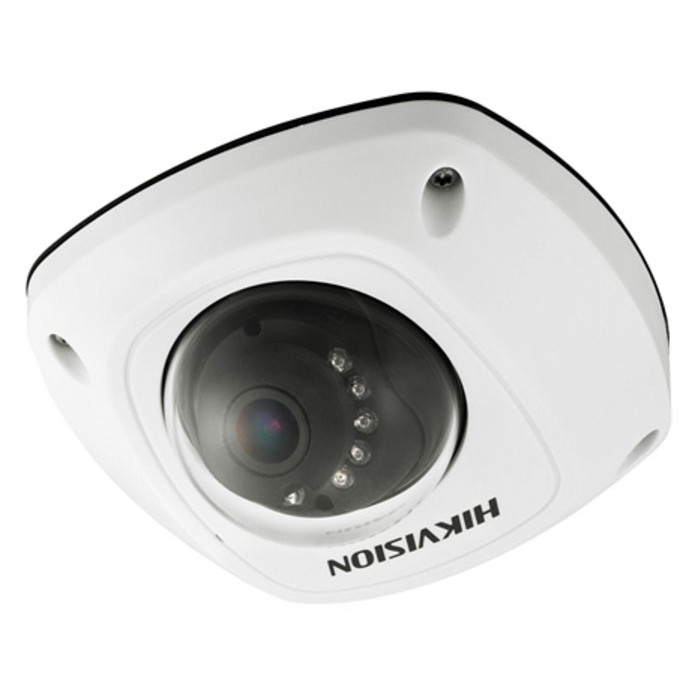

- Up to 2 megapixel high resolution
- Support H.264+
- Support dual stream, Full HD 1080p
- 3-axis adjustment, PoE
- IP67, IK08
- Up to 10m IR range
- Built-in Wi-Fi
- Built-in microphone, Audio Output, Alarm IO
CAMERA
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm, 4mm, 6mm @ F2.0 |
| Angle of view | 114°(2.8mm), 88°(4mm), 55°(6mm) |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| DNR | 3D DNR (Digital Noise Reduction) |
| Wide Dynamic Range | Digital WDR 120dB |
| 3-Axis Adjustment | Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
COMPRESSION STANDARD
| Video Compression | H.264 / MJPEG/H.264+ |
| H.264 Type | Main Profile |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Dual Stream | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Max. Resolution | 1920 × 1080 |
| Max Frame Rate | 50Hz: :Main stream:25fps(1920×1080),25fps(1280×960),25fps(1280×720)Sub stream:25fps(352×288),25fps(640×360) |
| 60Hz: Main stream:30fps (1920×1080), 30fps(1280×960), 30fps(1280×720) Sub stream: 30fps(352×240),30fps(640×360) | |
| Backlight compensation |
Yes, zone optional |
| Image Setting | Rotate mode, saturation, brightness, contrast adjustable by client software or web browser |
| ROI | Support |
NETWORK
| Network Storage | NAS (Support NFS,SMB/CIFS), ANR |
| Detection | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis |
| Face Detection | Detects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info |
| Alarm Trigger | Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standard | ONVIF (PROFILE S, PROFILE G) , ISAPI |
| General Function | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filtering, Anonymous access |
INTERFACE
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| On-board | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Alarm interface | 1x alarm I/O |
| Audio interface | Built-in microphone and 1x audio output |
| Reset Button | Yes |
WIFI SPECIFICATION
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz – 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transfer Rates | 11b: 11Mbps; 11g: 54Mbps; 11n: up to 150Mbps |
| Wireless Range | 50 meters (The performance varies based on actual environment) |
GENERAL
| Working | -30 °C to 60 °C (-22 °F to 140 °F) |
| Temperature/Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | 12V DC ± 25%, PoE (802.3af, class 3) |
| Power Consumption | Max. 5W |
| Weather Proof Ratings | IP67 |
| Impact Protection | IEC60068-275Eh; EN50102, up to IK08 |
| IR Range | 10 meters |
| Material | Plastic & Metal |
| Dimension | 99.3×96.7×52.8 mm |
| Weight | 600g (1.32 lb) |
