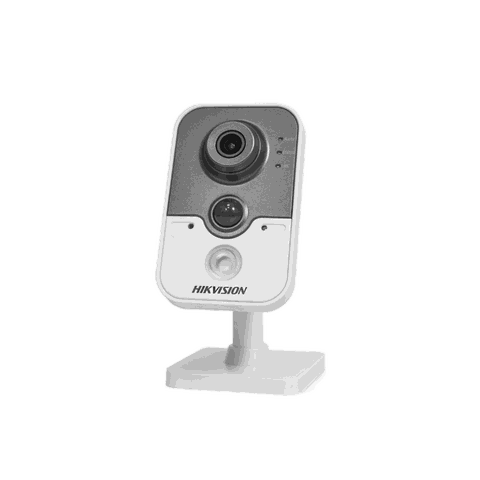

- Up to 4.0 megapixel high resolution
- Dual streams
- Full HD 1080p, 120db WDR, 3D DNR
- EXIR high performance LEDs, PoE
- Built-in Wi-Fi, Alarm I/O, Support PIR
- Up to 10m IR range
- Support on-board storage, up to 128GB
- Build-in microphone and speaker, support two-way audio
CAMERA
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | 0.01Lux @(F1.2,AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Lens | 2.8mm@ F2.0 |
| Horizontal field of view | 105.8°[2.0 mm (126°), 4 mm (83°), optional] |
| Lens Mount | M12 |
| Day &Night | IR cut filter with auto switch |
| DNR | 3D DNR (Digital Noise Reduction) |
| Wide Dynamic Range | Digital WDR 120dB |
COMPRESSION STANDARD
| Video Compression | H.264 / MJPEG/H.264+ |
| H.264 Type | Baseline Profile/Main Profile |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| Dual Streams | Support |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-128Kbps(MP2L2) |
| Max. Resolution | 2688 × 1520 | |
| Frame Rate | Main Stream | 50Hz: 20fps (2688 × 1520), 25fps (1920 × 1080, 1280×720) |
| 60Hz: 20fps (2688 × 1520), 30fps (1920 × 1080, 1280×720) | ||
| Sub-Stream | 50Hz: 20fps (640 × 360, 352 × 288) | |
| 60Hz: 15fps (640 × 360, 352 × 240) | ||
| Day/Night Switch | Support auto, scheduled, and triggered by alarm input | |
| Image Setting | Support rotate mode, brightness, saturation, sharpness, contrast are adjustable via web browser and client software | |
| Others | Mirror, Wide Dynamic Range (WDR), (Backlight Compensation)BLC, (Region of Interest) ROI | |
NETWORK
| Network Storage | Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
| Detection | Intrusion detection, Line crossing detection, Motion detection, Dynamic analysis |
| Face Detection | Detects the face appears in the surveillance scene and triggers linkage methods such as alarm info and email info |
| Alarm Trigger | Tampering Alarm, HDD Full, HDD Error, Network Disconnected, IP Address Conflicted, Illegal Login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| General Function | One-key reset, Anti-flicker, Dual Streams, Heartbeat, Password Protection, Privacy Mask, Watermark, IP Address Filtering |
INTERFACE
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| On-board Storage | Built-in Micro SD/SDHC/SDXC slot, up to 128GB |
| Audio Interface | 1build-in Mic, 1 build-in speaker |
| Alarm | 1 alarm input, 1 alarm output |
| Reset | Yes |
WIFI SPECIFICATION
| Wireless Standards | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz – 2.4835 GHz |
| Channel Bandwidth | 20/40MHz Support |
| Protocols | 802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
| Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Output Power | 11b: 17±1.5dBm @ 11Mbps |
| 11g: 14±1.5dBm @ 54Mbps | |
| 11n: 12.5±1.5dBm | |
| Reception Sensitivity | 11b: -90dBm @ 11Mbps (Typical) |
| 11g: -75dBm @ 54Mpbs (Typical) | |
| 11n: -74dBm (Typical) | |
| Transfer Rates | 11b: 11Mbps; 11g: 54Mbps; 11n: up to 150Mbps |
| Wireless Range | 50 meters (The performance varies based on actual environment) |
GENERAL
| Working | -10 °C – 40°C (14 °F – 104 °F) |
| Temperature/Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | 12V DC ± 25%, PoE (802.3af) |
| Power Consumption | Max. 5W |
| PIR | Angle: 90°, Range: 8m |
| IR Range | 10 meters |
| Material | Plastic |
| Dimension | 2.8mm, 4mm lens: 72.3 × 91.9 × 131.3mm (2.85” × 3.62” × 5.17”) |
| 2mm lens: 72.3 × 88.6 × 131.3mm (2.85” × 3.49” × 5.17”) | |
| Weight | Approx. 400g (0.88lbs) |
