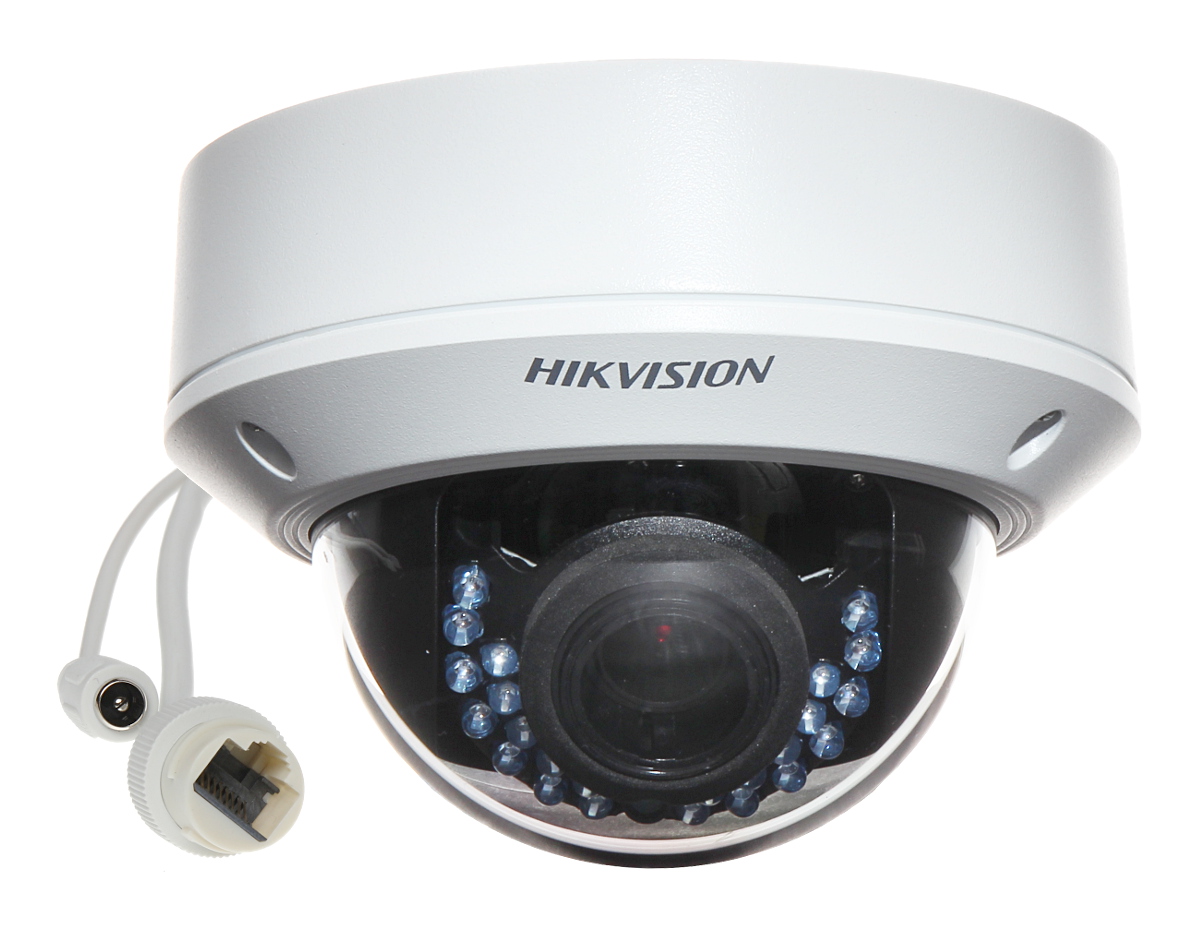

CAMERA HD 2.0MP 1/2.7" CMOS ICR DOME NETWORK DS-2CD2720F-IZS

Viết đánh giá
Tình trạng: Chỉ còn 59 sản phẩm
5.255.000₫ 6.910.000₫

- Up to 2.0 megapixel high resolution

- WDR, 3D DNR, Backlight Compensation

- The bit rate mode: CBR and VBR

- IR range: up to 30m

- Auto Electronic Shutter

- IP67, IK10, PoE; Audio, Alarm I/O

- Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB

- Motorized varifocal lens for easy remote focusing



Hãy gọi Liên hệ 0599262828

 CAMERA

Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.05Lux @ (F1.2, AGC ON) in color mode and 0.01Lux @ (F1.2, AGC ON) in black and white, 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Lens 2.8 ~ 12 mm @F1.4
Lens Drive Type Motorized Zoom & Focus
Horizontal field of view 113° (Wide) ~ 33.8° (Tele)
Lens Mount Φ14
Day &Night IR cut filter with auto switch
DNR 3D DNR (Digital Noise Reduction)
Wide Dynamic Range Digital WDR 120dB
White balance Automatic/Manual
3-Axis Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

COMPRESSION STANDARD

Video Compression H.264 / MJPEG
H.264 Type Baseline Profile/Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio compression G.711 / G.722.1/ G.726 / MP2L2
Audio bit rate 64 Kbps (G.711) / 16Kbps (G.722.1)/ 16 Kbps (G.726) / 32-128 Kbps (MP2L2)
Dual Streams Support


Max. Resolution 1920 × 1080
Max Frame Rate  50Hz: 25fps (1920 × 1080,1280 × 1024,1280 x 960,1280 × 720)
60Hz: 30fps (1920 × 1080,1280 × 1024, 1280 x 960,1280 × 720)
Sub Stream 50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576)
60 Hz: 30 fps (320 x 240), 30 fps (352 x 240), 30 fps (640 x 480), 30fps(704 x 480)
Image Setting Saturation, Brightness, Contrast, etc., adjustable by client software or web browser
Backlight Compensation Support, zone optional
ROI Codec Support one customized region for each stream

NETWORK

Network Storage Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS)
Detection Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis
Alarm Trigger Video Tempering Detection, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error
Protocols IPV4 and IPV6, TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, SSL, PPPoE, SNMP, ARP, filter IP
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function Anti-Flicker, Mirror, Password Protection, Privacy Mask, Watermark, Heartbeat, AGC, log access and 10 simultaneous access

INTERFACE

Communication Interface 1 RJ45 10M/100M Ethernet port/ Base T
Onboard storage Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB
Audio Interface 1x Audio I/O
Alarm interface 1x Alarm I/O

GENERAL

Working -30 °C to 60 °C (-22 °F to 140 °F)
Temperature/Humidity Humidity 95% or less (non-condensing)
Power Supply 12V DC ± 10%, PoE (802.3af)
Power Consumption Max. 5.5W with ICR on
Weather Proof Ratings IP67, IK10
IR Range 30 meters with smart IR
Material Metal & Plastic
Dimension Φ141 × 99.9 mm (5.55” × 3.94”)
Weight 800g (1.76 lbs)
