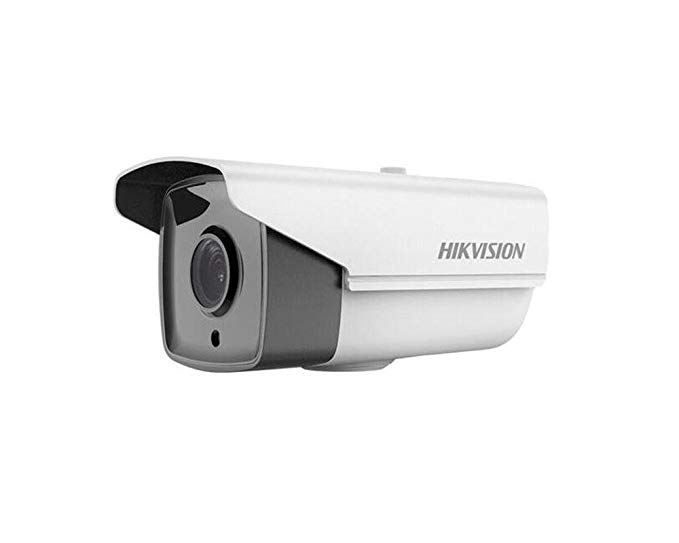

- 1/2.8” Progressive Scan CMOS
- 1920 × 1080@30fps
- 4/6 mm fixed lens
- IP66 weather-proof protection
- 2 Behavior analyses
- Built-in micro SD/SDHC/SDXC card slot,
up to 128 GB
- Audio/ Alarm ports support
CAMERA
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | No |
| 3-Axis Adjustment | Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360° |
| Lens Mount | M12 |
| Day &Night | IR cut filter |
| DNR | 3D DNR (Digital Noise Reduction) |
| Wide Dynamic Range | Digital WDR |
LENS
| Focal length | 2.8/4/6 mm |
| Aperture | F2.0 |
| Focus | Manual |
| FOV | 4 mm: horizontal FOV: 86°, vertical FOV: 46°, diagonal FOV: 102° |
| 6 mm: horizontal FOV: 54°, vertical FOV: 30°, diagonal FOV: 62° | |
| Lens Mount | M12 |
IR
| IR Range | 30m |
| Wavelength | 850nm |
COMPRESSION STANDARD
| Video Compression | Main stream: H.265/H.264 |
| Sub-stream: H.265/H.264/MJPEG | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream and sub-stream support |
| H.265 Type | Main Profile |
| H.265+ | Main stream and sub-stream support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
SMART FEATURE-SET
| Behavior Analysis | Line crossing detection, intrusion detection |
| Region of Interest | 1 fixed region for main stream and sub-stream |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub-stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Image Enhancement | BLC/3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Target Cropping | No |
| Day/Night Switch | Auto/Schedule |
NETWORK
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarms | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users; 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
INTERFACE
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Video Output | No |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
GENERAL
| Working | -30 °C to 60 °C (-22 °F to 140 °F) |
| Temperature/Humidity | Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, Φ 5.5 mm coaxial power plug PoE (802.3af, class 3) |
| Power Consumption | 12 VDC, 0.6A, max. 5.5W PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 8W |
| Weather Proof Ratings | IP67; TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Plastic & Metal |
| Dimension | 93.85 × 89.52 × 194.04 mm |
| Weight | 750g (1.65 lb) |
