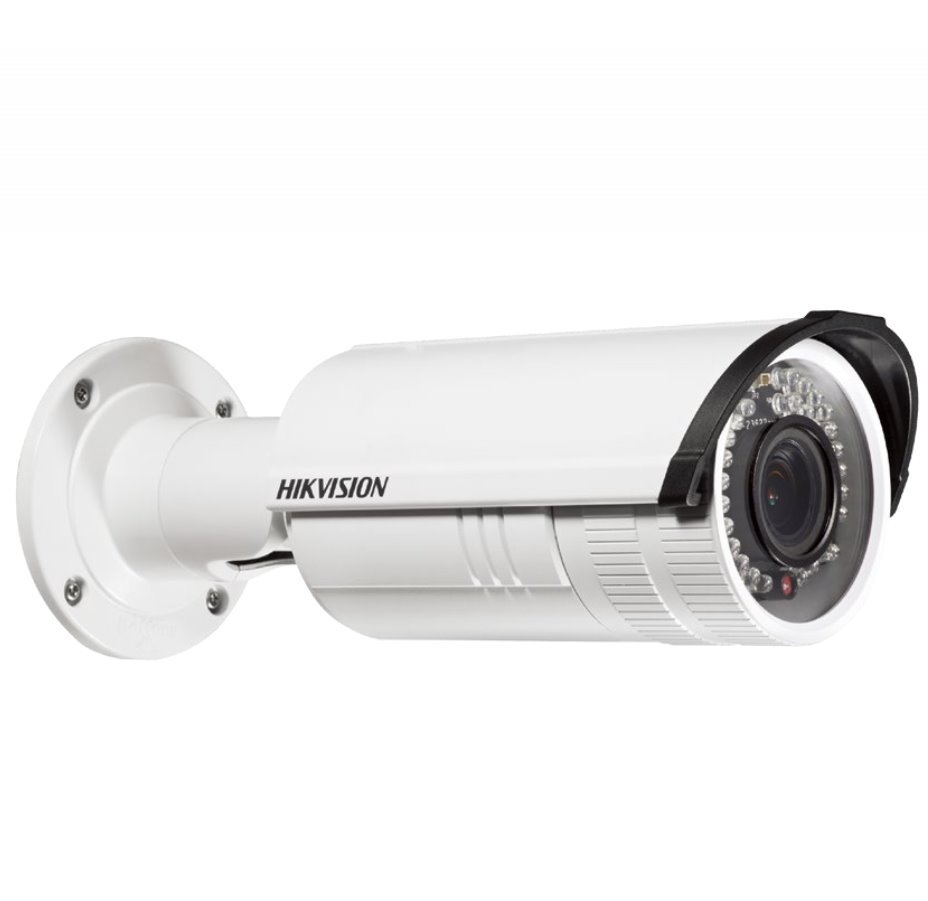

- 2 Megapixel IP Camera with Full HD 1080P real time video
- H.264, Mpeg4 compression mode (25 fps max)
- Simple focus by motorized varifocal lens
- 0 Lux: Integrated LED IR Illuminator to see even in total darkness
- Built-in Micro SDXC car reader (up to 64GB)
- IP66
- Alarm I/O, Audio I/O
CAMERA
Image Sensor | 1/2.7" Progressive scan CMOS 2 Megapixel |
Min. Illumination | 0.01Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Speed | 1/3 s to 1/100,000 s |
Lens | 2.7-12mm @ F1.4 |
Horizontal field of view | 133°to 33.8° |
Lens Mount | Φ14 |
Day &Night | ICR |
DNR | 3D DNR (Digital Noise Reduction) |
Wide Dynamic Range | Digital WDR 120dB |
3-Axis Adjustment | Pan: 0° to 360°, Tilt: 0° to 100°, Rotation: 0° to 360° |
COMPRESSION STANDARD
Video Compression | H.264 / MJPEG |
H.264 Type | Baseline Profile/Main Profile |
Video Bit Rate | 32 Kbps to 8 Mbps |
Audio compression | G.711 / G.722.1/ G.726 / MP2L2 |
Audio bit rate | 64 Kbps (G.711) / 16Kbps (G.722.1)/ 16 Kbps (G.726) / 32-128 Kbps (MP2L2) |
Dual Streams | Support |
Max. Resolution | 1920 × 1080 |
Max Frame Rate | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) |
60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720) | |
Sub Stream | 50 Hz: 25 fps (320 x 240), 25 fps (352 x 288), 25 fps (640 x 480), 25fps(704 x 576) |
60 Hz: 30 fps (320 x 240), 30 fps (352 x 288), 30 fps (640 x 480), 30fps(704 x 576) | |
Image Setting | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
Backlight Compensation | Support, zone optional |
ROI Codec | Support one customized region for each stream |
NETWORK
Network Storage | Support Micro SD/SDHC/SDXC card (up to 128 GB) local storage and NAS (NFS,SMB/CIFS) |
Detection | Intrusion Detection, Line Crossing Detection, Motion Detection, Dynamic Analysis |
Alarm Trigger | Video Tempering Detection, Network Disconnected, IP Address Conflicted, HDD Full, HDD Error |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
Standard | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
General Function | Anti-Flicker, Mirror, Password Protection, Privacy Mask, Watermark, Heartbeat |
INTERFACE
Communication Interface | 1 RJ45 10M/100M Ethernet port |
Onboard storage | Built-in Micro SD / SDHC / SDXC card slot, up to 128 GB |
Alarm interface | 1x alarm I/O |
Audio interface | 1x audio I/O |
GENERAL
Working | -30 °C to 60 °C (-22 °F to 140 °F) |
Temperature/Humidity | Humidity 95% or less (non-condensing) |
Power Supply | 12V DC ± 10%, PoE (802.3af) |
Power Consumption | Max. 7.5W |
Weather Proof Ratings | IP67 |
IR Range | 30 meters, Db Los <50 |
Material | Metal |
Dimension | 258.6 × Φ105 mm (10.2'' × 4.1'') |
Weight | 1200g (2.66 lb) |
